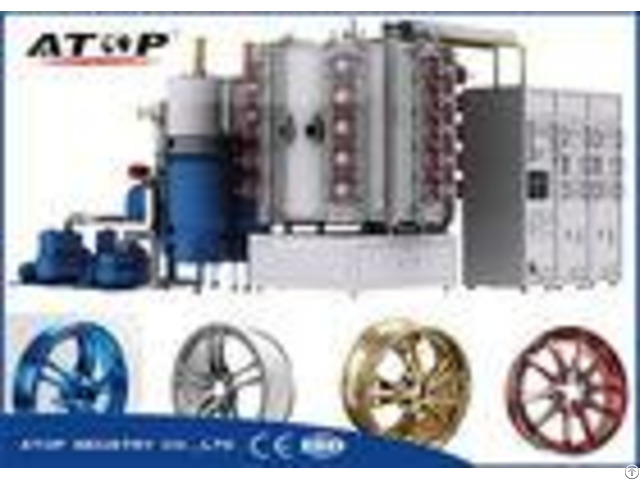

Energy Saving Magnetron Sputtering Coating Machine For Gold Car Wheel Hub - China

ATOP Car Wheel Hub Magnetron Sputtering PVD Vacuum Coating Machine Main Feature 1 - Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the cathode surface magnetic field near the work piece surface.

Then it improves the sputtered atom ionization rate.

It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.

2 - It equipments cryogenic ion secondary source, some substrate without heating the material, It can directly do the cold plating film at room temperature, save energy, increase productivity.

3 - The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool Coater coating applications require heating device, other applications do not need the device.

4 - High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional coating on a variety of products.

So it is a ideal equipment to do the high-grade and best coating for mass production.

5 - The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode and the magnetic field structure, .

It will happen atomic diffusion between the coating and the material.

It also has the advantages that lon Beam Assisted Deposition.

Application Field It applies to hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color, rose gold, coffee, brown, bronze, blue, black, white, gray and other colors), it combined with magnetron sputtering technique can be plated the multilayer composite membrane and manufactured plated stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

- - - - Product Name | ATOP Car Wheel Hub Magnetron Sputtering PVD Vacuum Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on | Coating Film | High-grade decorative coating.

| Coating Color | Gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc.

| Applications | Hardware, glass crafts, ceramic crafts such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on.

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Coating Material | Stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

| Features | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| - - - - Basic Configuration 1 - the coating chamber, valves and piping are made of stainless steel, vacuum chamber size from 500 mm to 2000 mm.

2 - The vacuum system consists of mechanical pump, rotary vane pump, roots pump and cold well high vacuum oil diffusion pump or molecular pump.

3 - The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium frequency power supply.

4 - Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of the entire production process, and automatic storage of process parameters.

5 - The equipment is equipped with high power bias system and the ionizing source auxiliary deposition coating.

Coating Samples
