Fill And Draw Operation Web Coating Machine Energy Saving For Aluminium Wire - China

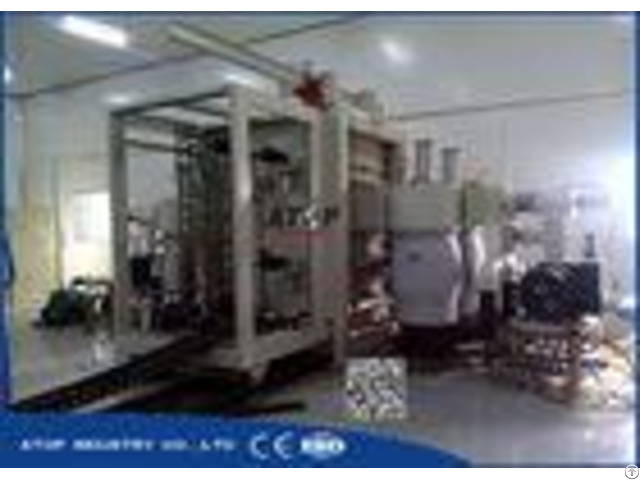

ATOP Evaporation Magnetron Sputtering Vacuum Web Coating Machine For Aluminium Wire Application Field Evaporation, magnetron series rolling vacuum coating machine are mainly used to do the metal film on the surface on the plastic, cloth, paper, tinsel.

These products will be widely used on package, printing, anti- counterfeiting, textile, electronic industry and so on.

- - - - Product Name | ATOP Evaporation Magnetron Sputtering Vacuum Web Coating Machine For Aluminium Wire | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Plastic film, paper sheet, Cloth etc.

| Coating Film | Decorative film, metal film, etc | Coating Colors | Gold, rose gold, coffee, brown, bronze, blue, rainbow etc.

| Applications | Package, printing, anti-counterfeiting, Textile, electronic industry and so on.

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Features | The rolling system adopts high precision servo frequency conversation to control the speed.

stable operation, high coating speed, when it release and loading the products.

It will be very neat, no scratch, no drape to material.

| Configuration | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| Weight | 3Tons-8Tons accordingly | - - - - Configuration Machine includes the design as following: 1)Fill-and-draw operation: Roll to Roll in the vacuum chamber 2)Double vacuum systems: Divided into Rolling chamber and Vapor chamber and each have separate vacuum pumps unit.

3)Cooling roller: The film would be cooled by the roller after metalizing rapidly.

4)Hot evaporation system: Thermal heating evaporation boats, and supply aluminum continuously.

5)Digital control of film driving system: Includes 3 groups of Servo motor 1)2 pieces of nip rolls( angle and bending are adjustable ) 2)Process control system (PLC) and auto start process.

3)Touch screen operation system.

4)Filming roll which -15cooling and heat system to avoid the heat damage on the film.

5)Cold trap and loop cooling system.

Main Feature 1 - Each wire-feeding unit controlled by computer motor separately.

The speed can be adjusted together or separately with speed display.

2 - Equipped with high standard vacuum pump system, with large vacuum pump speed, by PLC control.

3 - The rolling system adopts high precision servo frequency conversation to control the speed.

stable operation, high coating speed, when it release and loading the products.

It will be very neat, no scratch, no drape to material.

4 - The tension system uses the digital control, high tension, constant Linear velocity, the moving speed faster.

5 - Equipped with big capacity power source, high coating efficiency, good coating uniformity.

6 - Stable operation, neatly release and loading, good coating uniformity, short production cycle, low energy consumption, easy operation and maintenance, stable performance and other more advantages.

Coating Samples
