Functional Pvd Coating Machine With Circuit Overload And Water Breaking Device - China

price: check with company for price

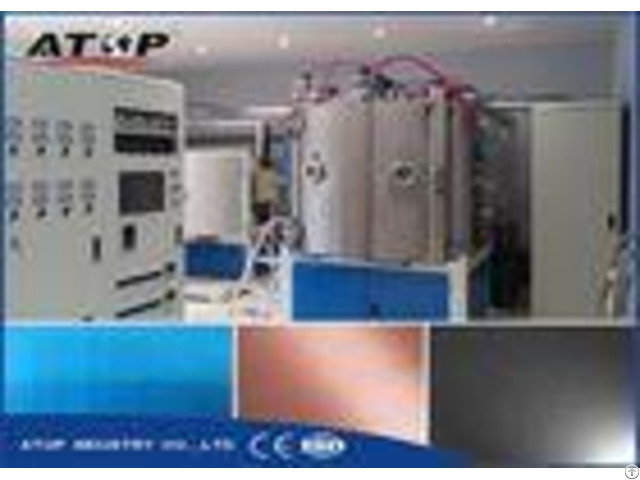

ATOP Vacuum Coating Machine For Stainless Steel Sheet PVD Vacuum Metalizing working principle Magnetron sputtering magnetron sputtering working principle of vacuum coating machine, the so-called "splash", under the action of the electrons in an electric field accelerates to the substrate in the process of collision with argon atoms, ionization out large amounts of argon ions and electrons.

The electron flies toward the substrate, the argon ion speeds up the target material under the action of the electric field, sputtering out a large number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the film.

Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz magnetic force, the influence of confined area near the target surface plasma, the plasma density in the area is very high, secondary electron under the action of magnetic field around the target surface is circular motion, the electron motion path is very long, constantly in the process of movement of the impact ionization out large amounts of argon ion bombardment of target, after many times of collision of the electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target material, the final deposition on the substrate.

Application Field It applies to hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color, rose gold, coffee, brown, bronze, blue, black, white, gray and other colors), it combined with magnetron sputtering technique can be plated the multilayer composite membrane and manufactured plated stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

- - - - Product Name | ATOP Vacuum Coating Machine For Stainless Steel Sheet PVD Vacuum Metalizing | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on | Coating Film | High-grade decorative coating.

| Coating Color | Gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc.

| Applications | Hardware, glass crafts, ceramic crafts such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on.

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Coating Material | Stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

| Features | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| - - - - Main Feature 1 - It equipments cryogenic ion secondary source, some substrate without heating the material, It candirectly do the cold plating film at room temperature, save energy, increase productivity.

2 - The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool Coater coating applications require heating device, other applications do not need the device.

3 - High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional coating on a variety of products.

So it is a ideal equipment to do the high-grade and best coating for mass production.

4 - Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the cathode surface magnetic field near the work piece surface.

Then it improves the sputtered atom ionization rate.

It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.

5 - The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode and the magnetic field structure, .

It will happen atomic diffusion between the coating and the material.

It also has the advantages that lon Beam Assisted Deposition.

6 - Vacuum pumping system, electric control system and complete vacuum coating system can be customized according to user requirements.

Coating Samples


Company Contact:


  • Phone: 86-510-82858608

  • Address: No. 79, Xiyi Road, Xinwu District, Wuxi, Jiangsu, China , Wuxi , Jiangsu , China

  • Email: Email


Published date: January 15, 2018

  • Business Description: Atop Industry Co., Ltd, is specialized in vacuum coating machines.

    Our engineering team has more than 20 years of experience in PVD coating industry.

    Our factory has obtained ISO quality management system and CE certificate.
