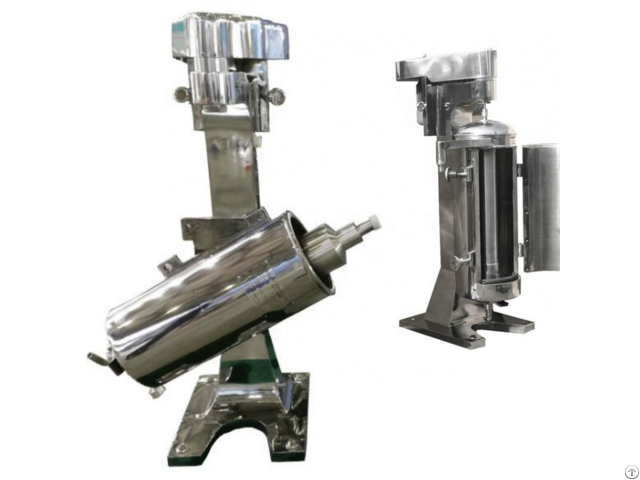

Gf105 Industrial Tubular Centrifuge Milk Cream Separator - China

gf105 industrial tubular centrifuge milk

High Speed Tubular Bowl Separator Structure and principle: The separator consists of machine body, driving part, bowl, liquid collecting pan and liquid-in bearing seat etc.

The material is sprayed onto the bowl from the inlet on the bottom and strong centrifuge force is formed when the bowl rotates with the material and that makes the material flow upper along the wall of the bowl and then separated because of the different gravity by the centrifugal force.

GF-for separation: Heavy liquid forms outer ring and light liquid forms inner ring.

They flow to the top of the bowl and discharge from their respective outlet.

And the little solid is settled on the wall of the bowl and discharged manually after the machine stops.

GQ-for clarification: Heavy solid is deposited on the inner wall of the bowl, and forms the sludge.

And it will be

discharged by manual after the machine stops.

The clear liquid flows out of outlet from the top of the bowl.

It is mainly used for separating all kinds of suspension difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.

The motor connect with the big pulley and delivery the power to the spindle through the belt, tensioner and small pulley and rotate with the bowl in high-speed as the clockwise.

The high speed tubular centrifuge is mainly used in liquid-solid separation, liquid-liquid-solid separation in bio-pharmacy, beverage, chemical industry.

It is an ideal separation equipment by centrifuging, especially for those feeding with little gravity difference, and small dimension in diameter.

1 - The unique design of interior blade is more suitable for the isolation of the fermentation bacteria than the conventional

tubular separators.

Equipped with reverse stop device, the residual mother liquid can be retained completely without loss once the machine stop.

2 - With advantages of high separation factor and strong separation ability, It is applicable to separate and clarify the materials which is difficult to separate by ordinary centrifuge and all kinds of emulsion liquid such as transformer oil, lubricating oil, fuel oil, turbine oil, grease, dyes, and saponification separation and so on.

3 - Simple structure in linear type, easy in installation and maintation.

4 - Adopting advanced world famous brand components in bearing parts, electric parts and operation parts.

5 - Running in a high automatization and intellectualization, no pollution

6 - Simple to set up, use and clean for minimal down-time between separations

7 - No replacement membranes or costly disposables

8.3-phase electric motors provide power for rapid acceleration and quieter operation.

9 - Small footprint.
