Glass Bangles Plasma Coating Machine Titanium Evaporation Horizontal Type - China
price: check with company for price

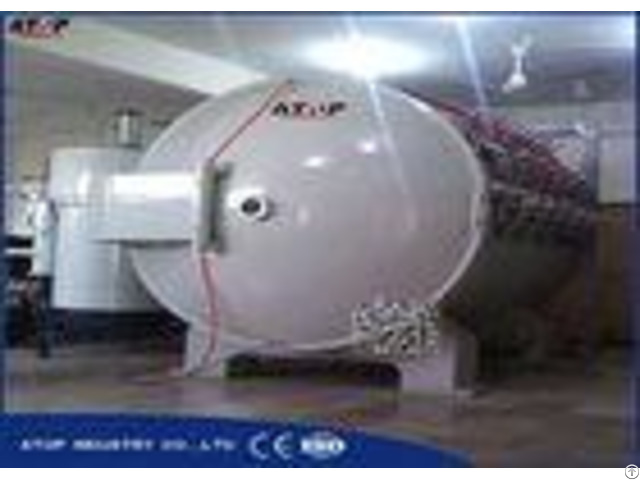

ATOP Horizontal Type Glass Bangles Plasma PVD Coating Machine The machine is consist of vacuum chamber, vacuum pumping system, bias power supply, coating system, work-piece rotating system, cooling system and electrical controlling system.
Main Feature - - - - Product Name | ATOP Horizontal Type Glass Bangles Plasma PVD Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Glass, Plastic, metal bangles, rings etc | Coating Film | High-grade decorative coating.
| Coating Colors | Gold, rose gold, silver, purple, red, blue, black, white, gray etc.
| Applications | Glass, Plastic, metal bangles, rings etc | Structure | Horizontal type ; single door type | Features | Equipped with 1-2 sets new model evaporation electrode, ion source etc.
easy installation and discharge, convenient maintenance.
Work rack flexible and reliable by public rotation of gear transmission structure.
| Configuration | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.
| Weight | 3Tons-8Tons accordingly | - - - - Application Field 1 - It can be widely used to do the decorative coating and function coating on the surface of plastic, ceramic, glass, resin, candle and metal material.
2 - High efficiency, full automatic, integrating the vacuum technology, evaporation coating and electromechanical integration technology together, Its an ideal equipment to do the high-grade decorative coating.
3 - It can be widely used in crafts, gifts, hardware appliances, accessories and electronics, machinery, light industry and other industries.
Normal working conditions of the machine (1).
Power supply: five-wire three-phase, 380V5%, 50Hz, with ground resistance<5 - (2).
Compressed air : 0.5~0.7Mpa.
(3).
Cooling water can use city tap water, deionized water is best.
Temperature of cooling water should less than 25 C .
Water pressure should be 0.2Mpa to 0.4Mpa.
And the waterresource should have the ability to add new water in rate more than one hundred liter per minute.
(4).
Environmental condition: Floor, ceiling and walls should be clean.
Indoor air should be clean, dry and no-dust.
No flammable, explosive and corrosive gas indoors.
(5).
Coating air: Ar2, C2H2, N2, O2, high purity(99.99%).
Coating Samples
Company Contact:
- Posted By: Atop Industry Company
- Phone: 86-510-82858608
- Address: No. 79, Xiyi Road, Xinwu District, Wuxi, Jiangsu, China , Wuxi , Jiangsu , China
- Email:
Published date: January 15, 2018
- Business Description: Atop Industry Co., Ltd, is specialized in vacuum coating machines.
Our engineering team has more than 20 years of experience in PVD coating industry.
Our factory has obtained ISO quality management system and CE certificate.
