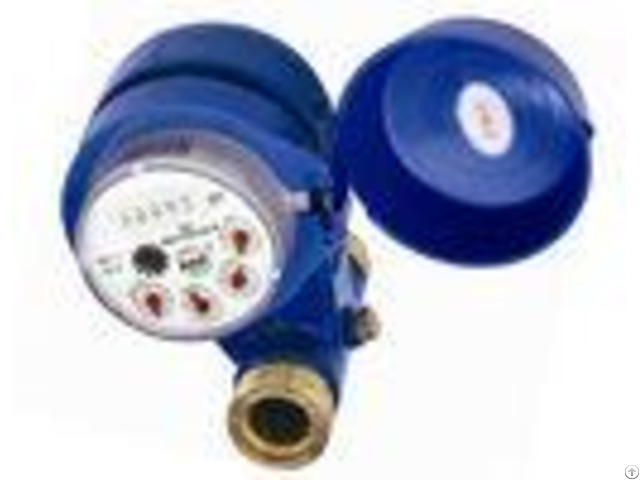

Grey Iron Housing Vertical Water Meter Dn15 25 With Magnetic Drive Impeller - China

multi jet water meter, vertical mounting, magnetic driven, impeller for water utility billing DN15-25 ProductDescription These vertical mounting type, dial water meters use the multi-jet principle, also single jet principle available for smaller port size.

This vane wheel water meter is known for its wide range, simple operation, and accuracy in cold water or hot water totalization and flow rate metering.

The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another.

A gear train drives the register totalizer dials.

Applications range: These residential water meters are for record the total water volumetric flow meter in cubic, liter which pass through the closed pipe line, like water utilities, municipal water supply, etc.

Key Features # Multi-jet, dry-dial, easy for maintenance; # Magnetic drive reliable characteristic, long working life; # Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in a long term service; # Technical data conform to international standard ISO4064 Class B Data sheet - - - - Model | size | inch | Q4 m/h | Q3 m/h | Q2 L/h | Q1 L/h | Min L | Max m | LXSGD15 | 15mm | 1/2 | 3.125 | 2.5 | 50 | 31.3 | 0.05 | 9999 | LXSGD20 | 20mm | 3/4 | 5 | 4 | 80 | 50 | 0.05 | 9999 | LXSGD25 | 25mm | 1 | 7.875 | 6.3 | 126 | 78.8 | 0.05 | 9999 | - - - - Drawing Dimensions - - - - Model | L1 | L | H | B | D | d | mm | inch | LXSGD15 | 96 | 191 | 107 | 142 | G3/4B | R1/2 | LXSGD20 | 100 | 205 | 109.5 | 157 | G1B | R3/4 | LXSGD25 | 110 | 230 | 120 | 174 | G1-1/4B | R1 | - - - - Flow curve Pressure loss Competitive Advantage: # Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003 # Strict process control # Advanced calibration equipment # Engineer team Production line Measurement mechanism
