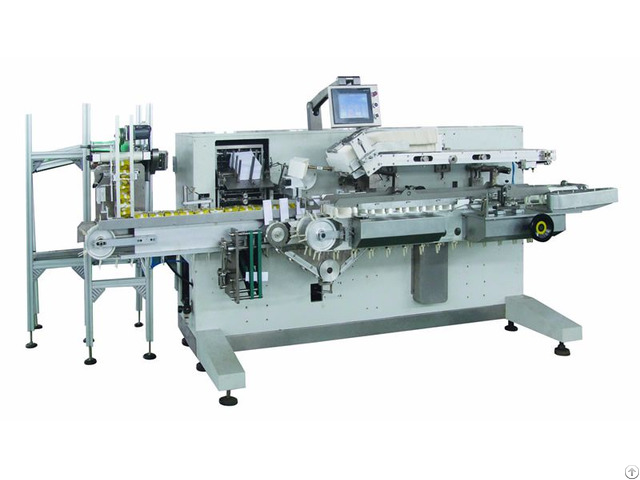

Hdz100 Multifunctional Automatic Cartooning Machine - China

Capability and Characteristics:

1, Servo motor (optional) and cam pusher cartooning mechanism with double insurance, fast, stable, adjustable piston stroke; work stable and reliable.

2, Single motor driving, PLC automatic control, Operating on touch screen.

Words and numeric display, automatic counting and automatic speed regulation, easy to operate, stable in operating.

3, With photoelectric detection and monitoring system to realize overload protection, words indication of failure diagnosis and automatic machine stop.

4, In a specified range, realizes carton packaging of various specifications without replacing parts, easy and convenient to adjust.

Main Function:

Automatic folding (1-4 folding) and conveying of leaflet, automatic products categorizing and feeding；automatic paper carton spreading, automatic leaflet and product carton packing, synchronous (3-rows)batch number embossing.

Automatic paper carton sealing and automatic waste eliminating.

Applicable Object:

Blisters, injection tray, bottles, ointments, rectangular or pill articles etc.

Packaging Material:

Paper carton size : (L×W×H) (70～165)×(25～90)×(1 2～50)mm

Material: 250～350g/m2

Manual leaflet size:

(L×W) before folding : (100～250)×(100～150)m m

(L×W) after folding : (100～150)×(20～40)mm

Material: 50～70 g/m2m

Usaging Requirements:

Clean compressed air: Pressure 0.6~0.8 Mpa;

Air consumption (Air compressor) ≥0.3 m3/ min

Power consumption: 380V 50 Hz 6Kw

Vacuum source: vacuum-0.09 Mpa.

Main Technical Parameters:

Item

Parameters

Output

20-100 cartons/min (relate with the products to be packed)

Finished products rate

≥99%

The rate of waste removed

100%

working noise

≤75dB(A)

Overall Dimensions

(L×W×H) 3355×1250×1400(mm)

Weight

1500KGS
