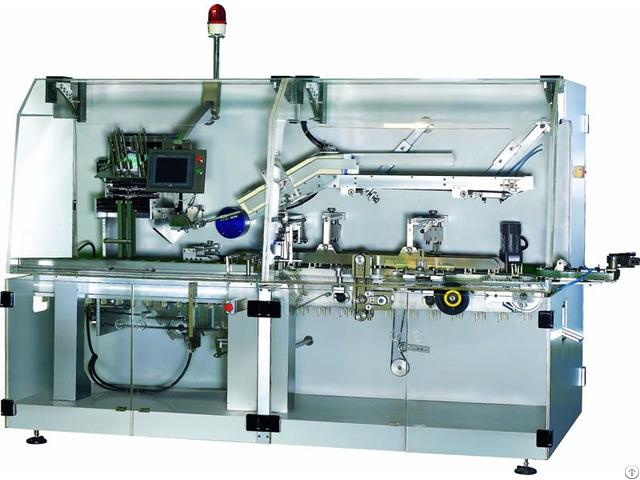

Hdz120 Multifunctional Automatic Cartooning Machine - China

HDZ120 cartooning machine is a high speed and stable running machine, with safety door, accord with safety requirements for the operator.

Capability and Characteristics:

1, Adopts full servo system, synchronous belt driving without any lubricating oil.

2, Servo motor works in feeding materials and carton packaging.

Speed and travel are adjustable, stable and reliable in operation.

3, Single motor driving, PLC automatic control, Operating on touch screen, words and numeric display, automatic counting and automatic speed regulation, easy to operate, stable in operation.

4, Photoelectric detection and monitoring system to realize overload protection, words indication of failure diagnosis, and automatic halt of failure.

5, In a specified range, realizes carton packaging of various specifications without replacing parts.

And it is easy and convenient to adjust.

6, The especial designed feeding mechanism can realize sole machine produce.

7, Innovative and transparent security casters to enhance general view and security of the machine.

Main Function:

automatic folding (1-4 folding) and conveying of leaflet, automatic products categorizing and feeding；automatic paper carton spreading, automatic leaflet and product carton packing, synchronous (3-rows)batch number embossing.

Automatic paper carton sealing and automatic waste eliminating.

Applicable Object:

Blisters, injection tray, bottles, ointments, rectangular or pill articles etc.

Packaging Material:

Paper carton size: (L×W×H)

(70～130)×(45～100) ×(15～50)mm

Material: 250～350 g/m2

Manual leaflet size:

(L×W)before folding：(100～250)×(1 00～150)mm

(L×W)after folding：(100～150)×(2 0～40)mm

Material: 50～70 g/m2

Usaging Requirements:

Clean compressed air: Pressure 0.5～0.8 Mpa;

Air consumption (Air compressor)≥0.2 m3/ min

Power consumption: 380V 50 Hz 6Kw

Vacuum source: degree of vacuum-0.09 Mpa

Main Technical Parameters:

Item

Parameters

Output

40-120 cartons/min (relate with the products to be packed)

Finished products rate

≥99%

The rate of waste removed

100%

working noise

≤80dB(A)

Overall Dimensions

((L×W×H) 4700×1100×1950(mm)

Weight

3500KGS
