High Deposition Rate Sputter Coating Machine Plc Control For Water Bucket - China

ATOP Water Bucket Magnetron Sputtering PVD Vacuum Coating Machine Main Feature 1 - High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional coating on a variety of products.

So it is a ideal equipment to do the high-grade and best coating for mass production.

2 - Magnetron sputtering principle is based on the theory of the cathode glow discharge, it expend the cathode surface magnetic field near the work piece surface.

Then it improves the sputtered atom ionization rate.

It keeps the magnetron sputtering uniformity, also can improve the surface shining effect.

3 - The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode and the magnetic field structure, .

It will happen atomic diffusion between the coating and the material.

It also has the advantages that lon Beam Assisted Deposition.

4 - Vacuum pumping system, electric control system and complete vacuum coating system can be customized according to user requirements.

- - - - Product Name | ATOP Water Bucket Magnetron Sputtering PVD Vacuum Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on | Coating Film | High-grade decorative coating.

| Coating Color | Gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc.

| Applications | Hardware, glass crafts, ceramic crafts .

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Coating Material | Stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

| Features | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| - - - - Basic configuration 1 - the coating chamber, valves and piping are made of stainless steel vacuum chamber effective diameter from 500 mm to 2000 mm; 2 - The vacuum system consists of mechanical pump, rotary vane pump, rotz pump and a cold well high vacuum oil diffusion pump or molecular pump; 3 - The coating system adopts multiple flat target or cylindrical target, with multiple dc power or medium frequency power supply.

4 - The auxiliary pumping system adopts a low-temperature water vapor trap; 5 - The gas flow meter and flow control (display) control of the pneumatic system are adopted.

6 - The electric control system shall set up circuit overload, water breaking and sound alarm device of the broken air; 7 - Control system (touch screen + PLC), display detailed parameters in real time, fully automatic control of the entire production process, and automatic storage of process parameters.

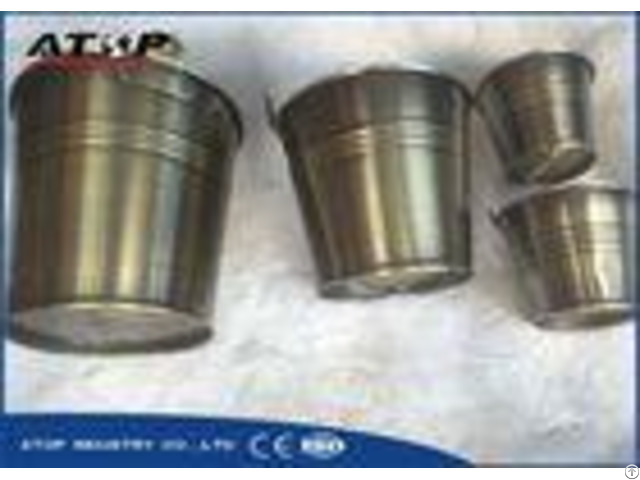

8 - The equipment is equipped with high power bias system and the ionizing source auxiliary deposition coating; Coating Samples
