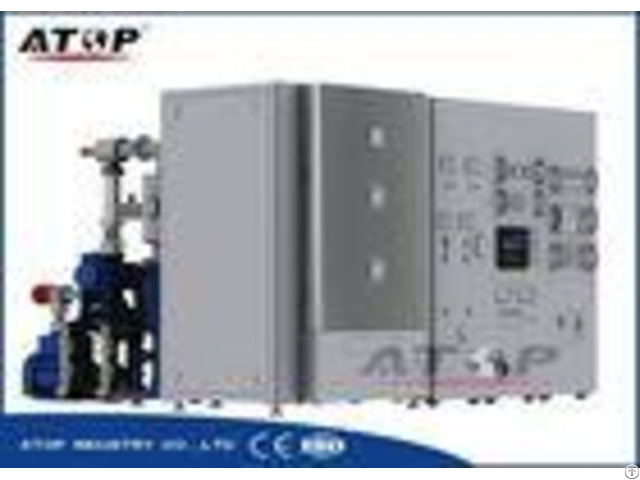

Optical Lens Anti Reflective Coating Machinewith High Thermal Efficiency - China
price: check with company for price
ATOP Electron Beam Gun Vacuum Coating Optical Lens Coating Machine Operational principle Electron beam evaporation is that the membrane is put into the water-cooled copper crucible, heated by direct use of electron beam, the vaporized atoms or molecules of membrane material is condensed to a mould by incidence to the surface of the substrate after escaping from the surface evaporation.
Electron beam evaporation has high thermal efficiency, beam density, evaporation speed, high purity of film made than the resistance heating evaporation.
Configuration The machine is consist of vacuum chamber, Work piece carrier, vacuum pumping system, bias power supply, coating system, gassystem, heating system, working system, control system, alarm system and electron gun, evaporation source.
Application Field Mainly used for glass lens, acrylic, crystal ornaments, plastic panels, resin material.
This equipment can coat diamond with colorful decoration film, reflective film, coating, uv protection film, reflective film, filter membrane, beam splitters, dielectric film and so on Very large scale film and multi-layer film can be realized.
The machine can meet the requirement of reflective glass, binoculars, glass lens, optical lens, light cup, the silver film, AF film products of phone screen.
Main Feature - - - - Product Name | ATOP Electron Beam Gun Vacuum Coating Optical Lens Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Glass lens | Coating Film | Can coat diamond with colorful decoration film, reflective film, coating, uv protection film, reflective film, filter membrane, beam splitters, dielectric film and so on.
Very large scale film and multi-layer film can be realized.
| Coating Material | The machine can meet the requirement of reflective glass, binoculars, glass lens, optical lens, light cup, the silver film, AF film products of phone screen | Applications | Glass lens, acrylic, crystal ornaments, plastic panels, resin material.
| - - - - 1 - The traditional vertical or efficient horizontal, equipped with large crucible gun, the film surface is smooth and uniformity; 2 - Equipped with high-power ion source, improve the coating quality and efficiency; 3 - Equipped quartz crystal film thickness control device, can realize the film forming rate and automatic process control; 4 - The design of structure can meet the demands of vacuum technology, vacuum system adopt free-oil system to ensure the whole system work under no oil condition, ensure film clean; 5 - The vacuum interlock protection of operating system, vacuum pump with water, power outage alarm function; 6 - Touch screen and PLC control, realize the parametric settings, real-time monitoring and intelligent fault diagnosis.
Coating Samples
Company Contact:
- Posted By: Atop Industry Company
- Phone: 86-510-82858608
- Address: No. 79, Xiyi Road, Xinwu District, Wuxi, Jiangsu, China , Wuxi , Jiangsu , China
- Email:
Published date: January 15, 2018
- Business Description: Atop Industry Co., Ltd, is specialized in vacuum coating machines.
Our engineering team has more than 20 years of experience in PVD coating industry.
Our factory has obtained ISO quality management system and CE certificate.
