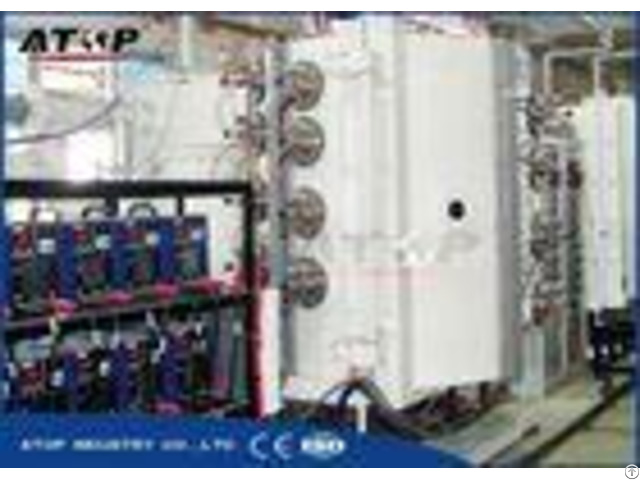

Plc Electric Control Metal Coating Machine For Glass Ceramics Crafts - China

ATOP Multi Arc Ion PVD Vacuum Coating Plating Machine For Ceramics Product Category Vertical single-door multi-arc vacuum coating machine vertical double open multi-arc vacuum coating machine horizontal multi-arc vacuum coating machine Working Principle Vacuum arc ion coating machine working principle is to put the vacuum arc discharge technique used for evaporation source technology, namely the ignition under vacuum evaporation source (cathode), and self sustaining formed between anode arc discharge, cathode arc light point out cathode material of the ions.

The joule heat generated in the current local concentration, make the burst of cathode materials local ionization, such as in the workpiece under the action of bias in combined with the reaction gas, which form the plating film is deposited on the workpiece surface layer.

- - - - Product Name | ATOP Multi Arc Ion PVD Vacuum Coating Plating Machine For Ceramics | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitaryware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on | Coating Film | High-grade decorative coating.

| Coating Color | Gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc.

| Applications | Hardware, glass crafts, ceramic crafts such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on.

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Coating Material | Stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

| Features | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| - - - - Application Field 1 - Metal.

Resin.

Glass, ceramic materials such as cup.

cage.

arts and crafts.

decorations.

toys and other products surface plating aluminium.

Nickel.

Chromium metal film.

Turn on the surface of the plating has metal feeling or red.

Purple.

Blue.

Green light, etc.

2 - Faucet.

Spray.

Shell.

Case.

Frame.

Knife.

Hardware.

Ceramic pieces, etc., for decorative film or functional film.

3 - Gear.

Hemp drill bit.

Tap, die, etc.

4 - Applicable to metal, ceramics, glass and other materials, such as hard metal film, metal compound film and decorative film.

5 - Widely used in the surface treatment of watches, glasses, information products, tools, molds, hardware, glass, ceramics, building materials and other industries.

6 - It is the ideal equipment for plating IP imitation gold, IPCr, IP light gun, IP coffee, IP rose, champagne gold and cognac.

Coating Samples
