Polycarbonate Blow Molding 5 Gallon 19 Litre Pc Bottle Making Machine - China

Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water and beverage industry.

Our products include commercial filtration systems, bottle and bag-in-box (BIB) filling lines, bottle and water tank blow molding machines, as well as additional equipment used in the water and beverage processing industry.

We've helped many foreign customers build their own water factories by supplying water filtration systems, water bottling, bag-in-box (bib) filling, bottle blow molding machines and other supporting equipment.

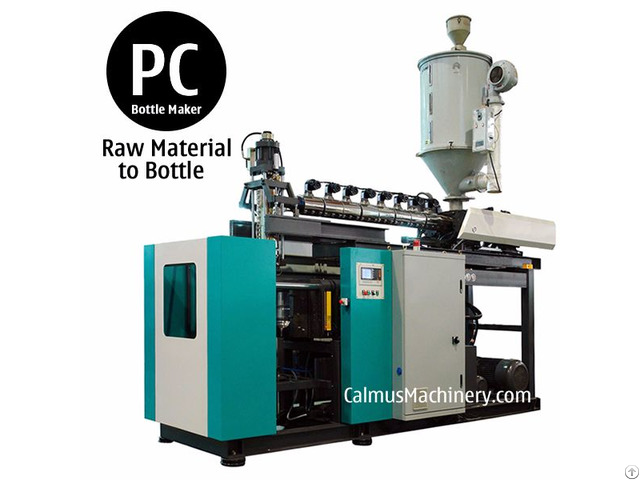

5 Gallon PC Bottle Making Machine | 19 Litre Polycarbonate Bottle Blow Molding Machine Type: Raw Material to Bottle (no need of Preforms)

Fed material: Polycarbonate (PC) raw material (in granules)

Bottle volume: 5 or 3 gallons Production capacity: 60 pcs/hour (5 gallons) 1) Plasticizing System

Screw Diameter (mm): 85

Ratio of Screw Length/Diameter (L/D): 28

Plasticizing Rate (kg/hr): 80

Injection Stroke (mm): 360

Screw Speed Range (rph): 10-56 2) Clamping System

Clamping Force (kN): 190

Clamping Stroke (mm): 350

Mould Thickness Range (mm): 370-410

Max Opening between Platens (mm): 720 3) Power Consumption

General Power (kW): 84

Hydraulic Motor (kW): 37

Electrical Heating Power (kW): 44

Average Electricals Power Rating (kW): 58 4) Air Source Connection

Required air source pressure: min.

6-10 bar; Air consumption: 0.4M3/min.

5) Water Source Connection

Required water pressure: min.

2-3 bar; Water consumption: 6M3/min.

6) Control System

100-point wall thickness control, 6" colour display.

7) Machine Dimensions

4, 985(L) x 1, 465(W) x 2, 765(H) mm 8) Machine Weight

6 tons (not including hydraulic oil and mould) 9) Production Capacity

>= 60 bottles/hour (based on qualification rate of 98%) ---

What do you need to prepare for making PC (Polycarbonate) Bottles?

PC resin granules in bags.

See the following pictures.

Simple and the PC resin is easy to buy locally.

Process: 1 - Load PC resin in the Hopper of the machine.

(The bag picture is for reference only and there are many other brands of PC resin available in the market.

)

5 Gallon PC Bottle Making Machine - Feed Polycarbonate Resin 2 - Melt PC resin coming into the mould.

5 Gallon PC Bottle Making Machine - Melt Polycarbonate Resin 3 - Melt PC resin is shaped into a bottle in the mould.

5 Gallon PC Bottle Making Machine - Shaped Polycarbonate Bottle 4 - The mould is open and take out the bottle.

5 Gallon PC Bottle Making Machine - Take Out The Polycarbonate Bottle Very simple.

Easy to buy material and easy to operatre.

What kind of bottles does the machine can make?

2-5 gallon bottles with or without handle.

PC Bottle Making Machine - Polycarbonate Bottle Types

Contact us today for a competitive price.
