Ptc Glass Polarimeter Psv 413 - China

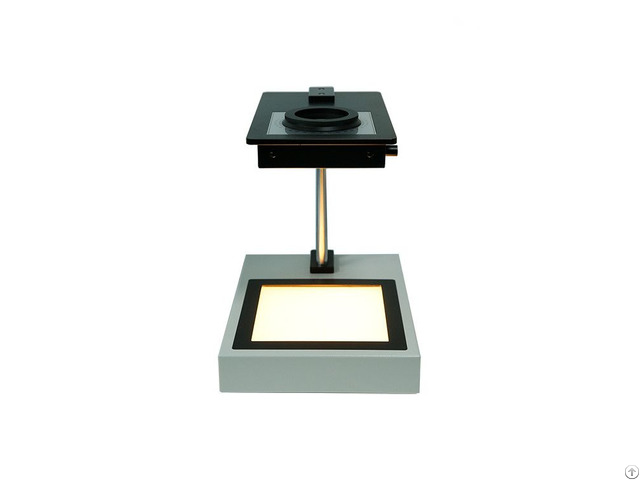

Glass Polarimeter (Ref.

PSV-413) Function

1 - Observe stress distribution in transparent plastic, glass products and optical crystals

2 - Measure retardation caused by internal stress in glass and optical crystals

Detecting object

1 - transparent glass products with complex construction.

such as : penicillin bottle, ampoule, mobile phone cover, light tube, light bulb, solar glass, automobile glass, sapphire, glass container, glass handicraft 2 - transparent plastic samples

plastic bottle, cosmetic bottle, beverage bottle, contact lenses, plastic tray, plastic film 3 - optical crystals such as quartz, SiC, calcium fluoride Detecting methods Sensitive Color Method and Senarmont Method Specification

Model: PSV-413

Size : W280×D385×H390mm

Measuring range ;0-280nm

Weight : 11Kg

Viewing field : W200×D200mm

Measure height : max240mm

Light Source : Warm white LED light 10W Others:

1 - Polarizing light field intensity : ≥ 120cd/m2 (10W LED lamp)

2 - Polarization degree of the polarizing material: ≥ 99% 3 - Polarization field: 200*200mm

4 - Instrument structure: a 1/4 wave plate in the analyzer and a full-wave plate in the polarizer (wavelength 565nm).

Slow axis of the plate is at 90° to the polarization plane .

5 - A dial on the Analyzer is used to measure the rotating angle (range: 0-180°)
