Sanitary Stainless Steel Food Grade Hygienic Pneumatic Welded Butterfly Control Valve - China

price: 50.00 Dollar US$

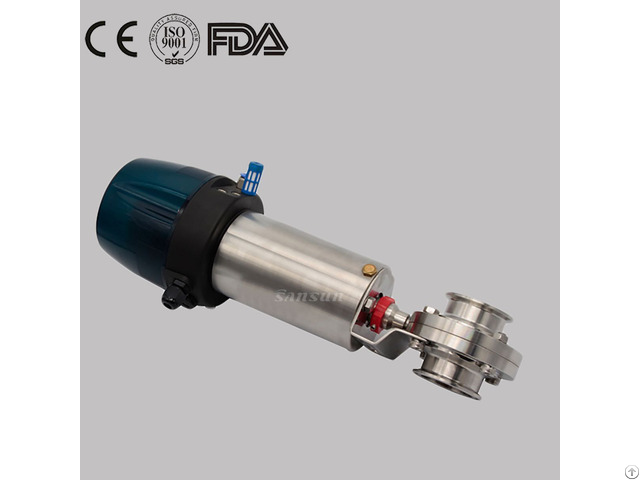

Sanitary Stainless Steel Food Grade Hygienic Pneumatic Welded Butterfly Control Valve

Products Photos Catalog Sanitary Stainless Photos Catalog

Product Name: Sanitary Stainless Steel Food Grade Hygienic Pneumatic Welded Butterfly Control Valve with Blue C-Top

Valve Body Material: 1.4404/1.4301, SS304/SS316L(Forged)

Disc: 1.4404/1.4301, SS304/SS316L(Forged)

Seal Material: EPDM(standard) conforms to FDA177.2600

Operating Principles: The butterfly valve can be operated automatically through actuator.

The actuator push piston of axial movementinto 90 degree so that it controls butterfly valve

Surface Finishing: RA<0.8 um

Air Pressure: 5-7 Bar

Max Working Pressure: 10Bar(DN25 to DN100), 8 bar(DN125 to DN150), 5 bar(DN200 to DN300)

Max.

Working Tem: 120 degree C

Availably Size: DN10-DN200, 1/2"-8"

Features: Compact and robust design PED97/23EC FDA.

177.2600 The valve body can be changeable with any kind of connection

Availably standard: DIN/SMS/RJT/ISO/IDF

Operated: Pneumatic

Options Gasket: EPDM, silicone or Viton

Connection: weld, clamp, thread, weld thread, flange

Control: Sensor, Pneuamtic actuator

(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)

Certificate: PED/97/23/ EC, FDA.

177.2600

Application scope: Dairy, food, beverage, pharmacy, cosmetic, Chemical, etc


Company Contact:


  • Phone: 86 - 577 - 86991996

  • Address: No. 691. Binhai Economic and Technological Zone, Wenzhou, Wenzhou , Zhejiang , China

  • Email: Email


Published date: October 27, 2020

  • Business Description:

    Wenzhou Sansun stainless Co., Ltd. Was founded in 2012, Located in Wenzhou, China.

    SANSUN is a professional manufacturer of Sanitary -grade stainless steel valves, fittings and pumps.

    Our products includes: 1 - Sanitary stainless steel valve ( sanitary butterfly valve, sanitary divert single seat valve, sanitary double seal mixproof valve, sanitary air relief Valve, sanitary diaphragm valve, sanitary check valve, sanitary ball valve, sanitary CPM valve, .

    ) 2 - Sanitary Stainless steel pipe fittings( stainless steel sanitary elbow, tee, clamp, ferrule, union, cleaning ball, sight glass, filter.

    ) 3 - Sanitary pump ( stainless steel sanitary centrifugal pump, sanitary rotary lobe pump, sanitary CIP pump) 4 - Tank accessories (manhole cover, filter, sight glass, cleaning ball ) We have skillful production people and strong R&D technicians who have accumulated over 15 years experience in manufacturing, developing and designing various sanitary fittings and sanitary valves.

    Under the strict control system - ISO 9001 quality assurance, we have made our OEM products widely extend to international well-known manufacturers.
