Screw Precision Die Dlc Coating Machine With Large Loading Capacity - China

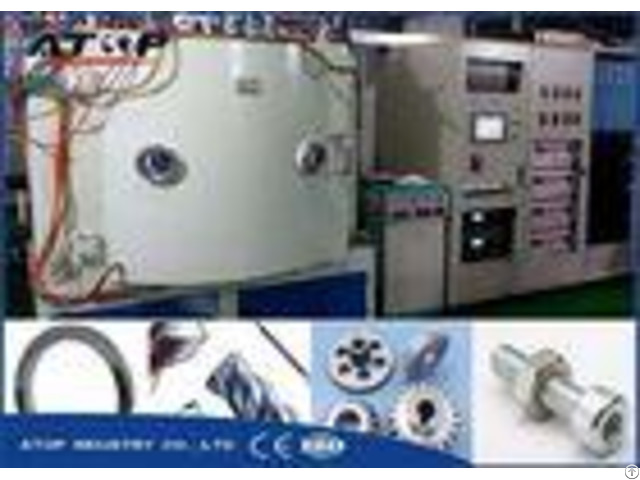

ATOP Screw/Precision Die Mould Hard Film PVD Vacuum Coating Equipment Basic configuration 1 - Coating room: the traditional vertical or efficient horizontal structure design, full stainless steel material, vacuum chamber of the effective diameter 800 mm to 2000 mm, double walled water cooling structure, with plug-in in antifouling stainless steel plate, easy to clean and operation, etc.

2 - The vacuum system: mechanical pump, rotary vane pump, roots pump, molecular pump, cryogenic pump, with cold trap of high vacuum oil diffusion pump large pumping speed extraction system, the backing pump optional oil-free vacuum pumps, stainless steel pipes and valves.

3 - The coating system: adopting multiple sets of intermediate frequency magnetron sputtering power supply, with 1-2 of the unbalanced magnetron target, and is equipped with 6-14 hot cathode arc, and the arc power supply, dc superposition pulsed bias power supply, the international leading level of arc source and anode layer ion source;Equipped with 1-2 sets of original imported off-loading source.

4 - Inflating system: automatic gas flowmeter and flow display instrument control.

Main Feature 1 - Plasma source assisted deposition technology, pre-cleaning and the auxiliary deposition to the work piece.

2 - Adopt the high power pulse bias power supply enhance the coating adhesion.

3 - Adopt multiple sets of twin arc, which can install 2-6 different target materials.

Pure metal or alloy composite nano film layer is achieved.

4 - The work piece rack adopts rotation and revolution structure, large loading capacity and temperature resistance.

The frame can move out of the chamber which is convenient to load heavy molds.

The work piece rack can be customized according to customer requirements and adopts inverter to adjust, and infinitely adjustable speed.

5 - The touch screen and PLC.

This machine can realize automatic control, automatic and manual switch.

- - - - Product Name | ATOP Screw/Precision Die Mould Hard Film PVD Vacuum Coating Equipment | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.

| Coating Film | Pure metal or alloy composite nano film | Coating Colors | Gold, silver, black etc.

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Features | Adopt multiple sets of twin arc, which can install 2-6 different target materials.

Pure metal or alloy composite nano film layer is achieved.

| Configuration | Plasma source assisted deposition technology, pre-cleaning and the auxiliary deposition to the work piece.

Adopt the high power pulse bias power supply enhance the coating adhesion.

| Weight | 3Tons-5Tons accordingly | - - - - Application Field 1 - Super-hard wear-resistant film, self-lubricating and anti-friction diamond-like coatings.

.

2 - Automotive, non-ferrous material machining and industrial engineering environments.

3 - This equipment is a multi functional coating equipment, which can be installed at the same time two to six different target material, pure metal or alloy plating nano meter film of single layer or multi layer, high- performance and super hard film layer, excellent wear resistance and corrosion resistance and beautification effect, mainly used in drill bits, milling cutter, core shaft, blades, precision mould, cutting tools, etc.

Coating Samples
