Spoon Knife Sputter Coating Equipment Low Energy Consumption For Tableware - China

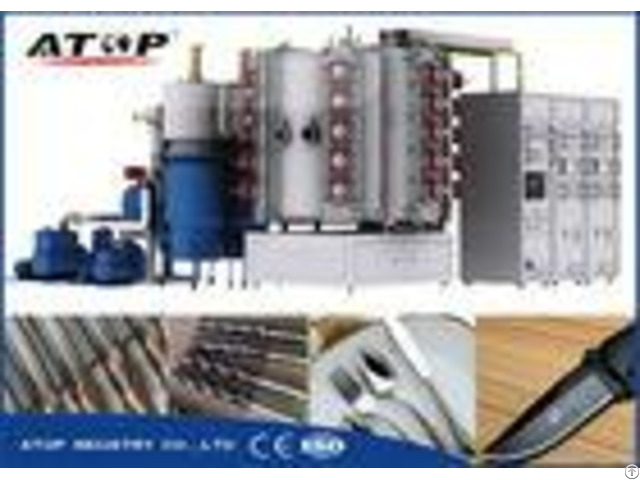

ATOP Spoon/Knife/Fork Magnetron Sputtering Vacuum Coating Machine For Tableware Working principle Magnetron sputtering working principle of vacuum coating machine, the so-called "splash", under the action of the electrons in an electric field accelerates to the substrate in the process of collision with argon atoms, ionization out large amounts of argon ions and electrons.

The electron flies toward the substrate, the argon ion speeds up the target material under the action of the electric field, sputtering out a large number of target atom, and the neutral target atom (or molecule) is deposited on the substrate to form the film.

Secondary electron in accelerating to fly to the substrate by magnetic field in the process of lorentz magnetic force, the influence of confined area near the target surface plasma, the plasma density in the area is very high, secondary electron under the action of magnetic field around the target surface is circular motion, the electron motion path is very long, constantly in the process of movement of the impact ionization out large amounts of argon ion bombardment of target, after many times of collision of the electron energy gradually reduce, cast off the yoke of the magnetic field lines, away from the target material, the final deposition on the substrate.

Application Field It applies to hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on.

You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color, rose gold, coffee, brown, bronze, blue, black, white, gray and other colors), it combined with magnetron sputtering technique can be plated the multilayer composite membrane and manufactured plated stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

Main Feature 1 - Rapid deposition rate and small temperature rise can inhibit the phenomenon of fire and target poisoning.

2 - The high energy emitted by sputtering has significantly enhanced the membrane density and adhesion.

3 - The touch screen +PLC can achieve full automatic control, automatic/manual switching; 4 - Large volume, large loading capacity and high production efficiency.

5 - The workpiece frame adopts the public rotation structure, which can set the automatic positive and backward rotation, and the product is even good; 6 - Reasonable configuration, quick pumping rate, low noise, low energy consumption; 7 - The film layer deposited by this equipment can meet customer requirements in terms of density, uniformity, purity and hardness - - - - Product Name | ATOP Spoon/Knife/Fork Magnetron Sputtering Vacuum Coating Machine For Tableware | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on | Coating Film | High-grade decorative coating.

| Coating Color | Gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc.

| Applications | Hardware, glass crafts, ceramic crafts .

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Coating Material | Stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

| Features | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| - - - - Coating Samples
