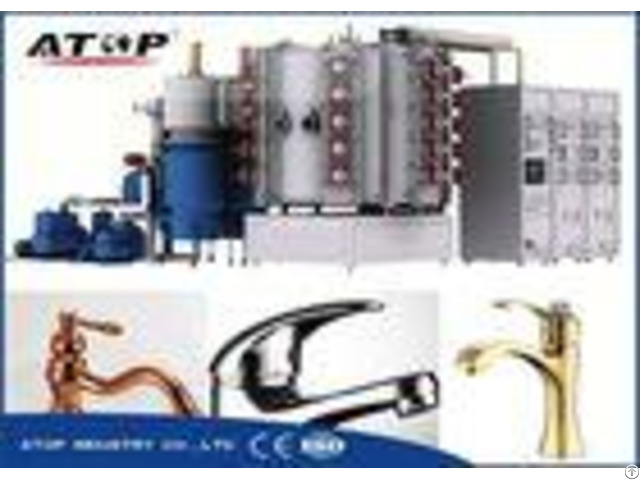

Water Faucet Pvd Plating Machine With High Power Impulse Magnetron Sputtering - China

ATOP Water Faucet/Tap Plating Magnetron Sputtering Multi Arc PVD Coating Machine Equipment Configuration Structure type: vertical type or horizontal type Chamber typr: single door or double doors Main Feature 1 - The arc plasma evaporation source is reliable, it can work under 40A current in optimizing the cathode and the magnetic field structure, .

It will happen atomic diffusion between the coating and the material.

It also has the advantages that lon Beam Assisted Deposition.

2 - It equipments cryogenic ion secondary source, some substrate without heating the material, It can directly do the cold plating film at room temperature, save energy, increase productivity.

3 - The maximum of the temperature for tool coating chamber can 600 degrees, In addition to the tool Coater coating applications require heating device, other applications do not need the device.

4 - High deposition rate, High coating speed, It can be widely used to do the decorative coating, functional coating on a variety of products.

So it is a ideal equipment to do the high-grade and best coating for mass production.

Coating Film You can make super-hard wear-resistant film coating, anti-corrosion film, decorative film(gold color, rose gold, coffee, brown, bronze, blue, black, white, gray and other colors), it combined with magnetron sputtering technique can be plated the multilayer composite membrane and manufactured plated stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

- - - - Product Name | ATOP Water Faucet/Tap Plating Magnetron Sputtering Multi Arc PVD Coating Machine | Vacuum Chamber Size | Decide according to the substrate size and output | Substrate | Hardware, glass crafts, ceramic crafts, such us watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on | Coating Film | High-grade decorative coating.

| Coating Color | Gold, rose gold, coffee, brown, bronze, blue, black, white, gray etc.

| Applications | Hardware, glass crafts, ceramic crafts .

| Structure | Vertical type ; horizontal type ; single door type ; double-door type.

| Coating Material | Stainless steel, aluminum, titanium, tungsten and other metal films may be manufactured as coated TIN, TIC, TICN, TIALN, CRN, CU, AU, diamond film (DLC), decorative film metal, film and non-metallic composite coating film and its compounds film.

| Features | High pumping speed, high efficiency, energy saving, full automatic process controller can be simple, reliable, beautiful.

| - - - - Coating Samples
