All The Slurry Pump Spare Parts - China

Slurry Pump Spare Parts namely the pump parts have a direct connection with slurries, They are very crucial to the service life of slurry pumps.

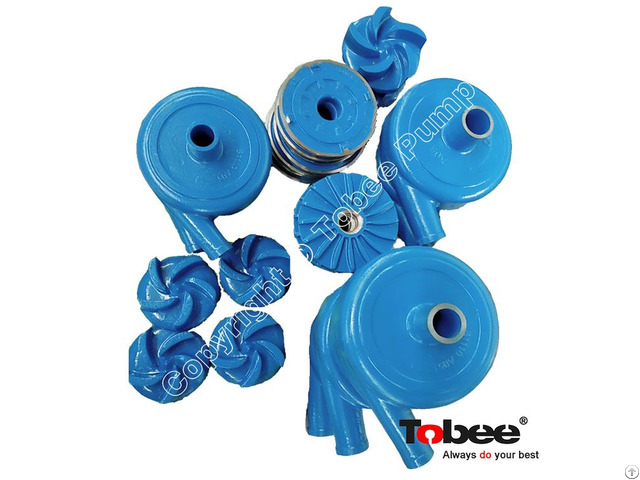

The wetted parts include impeller, liner, throat bush, frame plate liner insert, casing, etc., These parts are very easily worn-out components because they work under the longtime impact of abrasive and corrosive slurries in the high speed.

For the long service life of pump parts, the material plays an important role here.

Base: U-steel

Bearing: SKF, NSK, TIMKEN, HRB

Shaft: 40CrMo, SS316L

Mechanical seal: Burgmann

Packing seal: Asbestos fibers+mica, PTFE

Casing: HT250, QT500, Stanless Steel, Chrome, Bronze etc

Wetted parts: Ultra chrome alloy, Rubber, Polyurethane, Ceramic, Viton etc

• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.

Only four through bolts are required to hold the cartridge type housing in the frame.

• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance.

Hard metal liners are completely interchangeable with pressure molded elastomers.

Elastomer seal rings back all liner joints.

• Casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

• Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

Hard metal and molded elastomer impellers are complete interchangeable.

Cast in impeller threads require no inserts or nuts.

High efficiency and high head designs are also available.

• Throatbush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
