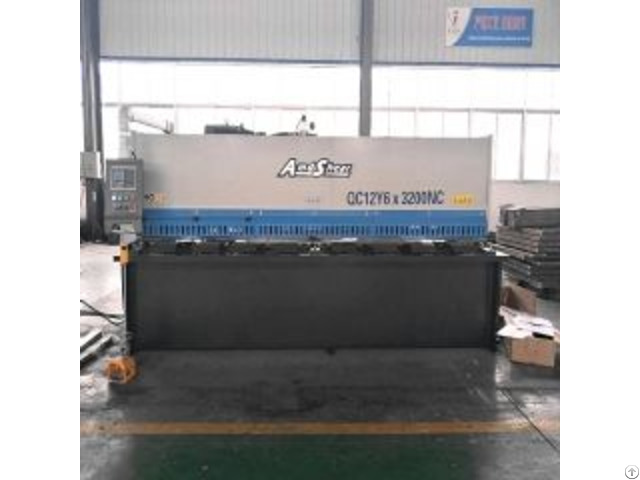

Amd 357 Cnc Electric Hydraulic Shearing Machine - China

smooth hydraulic cutting machine, big shearing machine Item No: 40

1 - The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.

2 - Hydraulic driven and returning stroke is activated by the accumulator or nitrogen cylinder smoothly and promptly.

3 - The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.

4 - Closed loop control system is composed of NC controller and the encoder.

It has the automatic function of inspection and compensation.

5 - The back gauge driven by servo motor adopts rolling ball screw, rolling guiding way, so it's positioning precision could reach 0.10mm.

6 - There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.

7 - The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.

8 - Full machine is guarded with safety guard with interlocker to prevent the operator from injured.

Model Shear size Shear Angle Strodes Backgauge

Range Main

Motor Weight Overall Dimensions

L×W×H

QC12Y-4×2000 4×2000 1 ° 30’ ≥21 20-600 7.5 4, 650 2540×1610×1650

QC12Y-4×2500 4×2500 1 ° 30’ ≥18 20-600 7.5 5, 500 3140×1610×1650

QC12Y-4×3200 4×3200 1 ° 30’ ≥14 20-600 7.5 6, 600 3840×1610×1650

QC12Y-4×4000 4×4000 1 ° 30’ ≥10 20-600 7.5 7, 550 4680×1705×1700

QC12Y-4×5000 4×5000 1 ° 30’ ≥10 20-600 7.5 16, 000 5786×2200×2160

QC12Y-6×2000 6×2000 1 ° 30’ ≥22 20-600 7.5 5, 100 2540×1960×1650

QC12Y-6×2500 6×2500 1 ° 30’ ≥18 20-600 7.5 5, 500 3140×1610×1650

QC12Y-6×3200 6×3200 1 ° 30’ ≥14 20-600 7.5 6, 600 3840×1610×1650

QC12Y-6×4000 6×4000 1 ° 30’ ≥10 20-600 11 8, 500 4640×1705×1700

QC12Y-6×5000 6×5000 1 ° 30’ ≥10 20-750 11 19, 700 5786×2200×2160

QC12Y-6×6000 6×6000 1 ° 30’ ≥7 20-800 15 25, 000 6900×2570×2280

QC12Y-8×2500 8×2500 1 ° 30’ ≥14 20-600 11 5, 500 3140×1610×1650

QC12Y-8×3200 4×2000 1 ° 30’ ≥12 20-600 11 6, 600 3840×1610×1650

QC12Y-8×4000 8×4000 1 ° 30’ ≥8 20-600 11 8, 500 4680×1705×1700

QC12Y-8×5000 8×5000 1 ° 30’ ≥7 20-750 15 21, 000 5786×2252×2310

QC12Y-8×6000 8×6000 1 ° 30’ ≥5 20-750 15 28, 000 6900×2570×2280

QC12Y-10×2500 10×2500 2 ° ≥10 20-600 15 7, 500 3350×1750×1950

QC12Y-10×3200 10×3200 1 ° 48’ ≥10 20-600 15 9, 500 3975×1750×1950

QC12Y-10×4000 10×4000 2 ° ≥12 20-800 18.5 15, 000 4800×2280×2100

QC12Y-12×2500 12×2500 2 ° ≥11 20-600 15 7, 500 3350×1750×1950

QC12Y-12×3200 12×3200 1 ° 30’ ≥10 20-800 18.5 12, 500 4020×2050×2230

QC12Y-12×4000 12×4000 2 ° ≥7 20-800 18.5 18, 000 4820×2300×2300

QC12Y-16×2500 16×2500 2 ° ≥8 20-800 18.5 15, 000 3400×2060×2350

QC12Y-16×3200 16×3200 2 ° ≥7 20-800 18.5 16, 300 4062×2300×2350

QC12Y-16×4000 16×4000 2 ° ≥5.7 25-800 30 20, 000 4850×2300×2300

QC12Y-20×2500 20×2500 2 ° 30’ ≥6 20-800 37 14, 000 3440×2088×2570

QC12Y-20×3200 20×3200 2 ° 30’ ≥5 35-800 37 20, 000 4150×2310×2730

QC12Y-20×4000 20×4000 2 ° 30’ ≥5 30-1000 37 25, 000 4920×2400×2770

QC12Y-20×5000 20×5000 2 ° 30’ ≥4 20-800 37 30, 000 5900×3000×3300

QC12Y-25×2500 25×2500 3 ° ≥5 40-800 37 16, 500 3450×2300×2730

QC12Y-25×3200 25×3200 3 ° ≥4 40-1000 37 26, 000 4100×2400×2770

QC11K-8×6000 0.5 ° —2 ° ≥7 20-750 22 25, 500 6700×2270×2620

QC11K-12×6000 0.5 ° —2 ° ≥6 20-1000 30 29, 000 6750×2405×2850

QC11K-16×6000 0.5 ° —2.5 ° ≥6 20-1000 37 36, 000 6800×2555×3000
