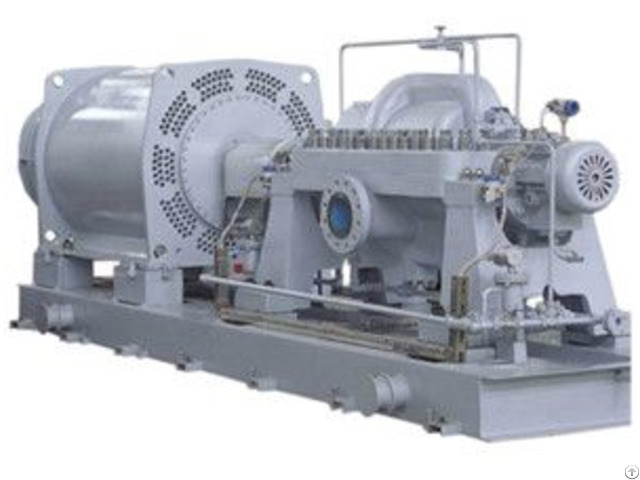

Api610 Bb3 Horizontal Axially Split Multistage Petrochemical Process Pump - China
price: contact company for price
Standards: ISO 13709/API 610(BB3)
Operating Parameters: Capacity Q: up to 2400 m³/h ( 10570 gpm )/ Head H: up to 2000 m ( 6560 ft )/ Pressure P: up to 35 MPa ( 5075 psi )/ Temperature T: -40 to 200 ℃ ( -40 to 392 ℉ )
Features: Impeller back to back arrangement / Double volute hydraulic passages/ First stage impeller with low NPSHr/ Seal chamber accommodates packing and multiple mechanical seal types.
/ Stiff shaft design/ Coupling with spacer simplifies the access to the bearing frame and the seal chamber (driving end)/ Renewable casing and impeller wear rings/ Dynamic balancing and TIR verifications on assembled rotors/ Jack screws (motor side) for an easier alignment setting/ Roller bearing and ball thrust with oil flinger lubrication system, Sleeve radial and tilting pad thrust bearings with pressure lubrication system
Company Contact:
- Posted By: Yantai Shengquan Pump Co., Ltd
- Phone: +86-535-4702066
- Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China
- Email:
- Website: http://www.sq-pump.cn
Published date: April 25, 2019
- Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.
There are 240 staff and workers, including 30 technicians.
The company has two factories, with a total area of 135, 000 square meters.
The current total is USD 29 million.
There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.
The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.
The company is a member of China General Machinery Industry Association Pump Association.
This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
