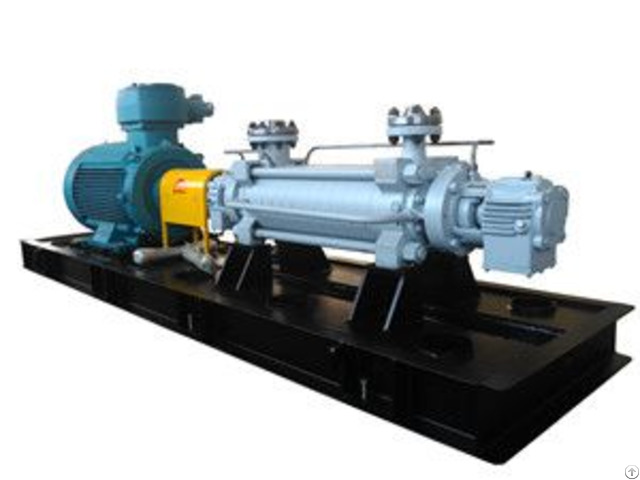

Api610 Bb4 Horizontal Foot Mounted Radially Split Multistage Diffuser Pump - China
price: contact company for price
Standards: ISO 13709/API 610(BB4) Operating Parameters: Capacity Q: up to 600 m³/h ( 2640 gpm )/ Head H: up to 1200 m ( 3940 ft )/ Pressure P: up to 15 MPa ( 2175 psi )/ Temperature T: -80 to 180 ℃ ( -112 to 356 ℉ )
Features: Identical radially split ring section sets/ O-ring interstage sealing arrangement/ First stage impeller with low NPSHr/ Seal chamber accommodates packing and multiple mechanical seal types.
/ Pump casing flanges according to ANSI B16.5- Other flange standards upon request/ Coupling with spacer simplifies the access to the bearing frame and the seal chamber (driving end)/ Axial thrust balancing device with balance disc and balance drum/ High radial load roller bearing.
Back-to-back angular contact bearings handle axial loads/ Jack screws (motor side) for an easier alignment setting
Company Contact:
- Posted By: Yantai Shengquan Pump Co., Ltd
- Phone: +86-535-4702066
- Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China
- Email:
- Website: http://www.sq-pump.cn
Published date: April 25, 2019
- Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.
There are 240 staff and workers, including 30 technicians.
The company has two factories, with a total area of 135, 000 square meters.
The current total is USD 29 million.
There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.
The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.
The company is a member of China General Machinery Industry Association Pump Association.
This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
