Api610 Bb5 Multi Stage Centrifugal Pump - China

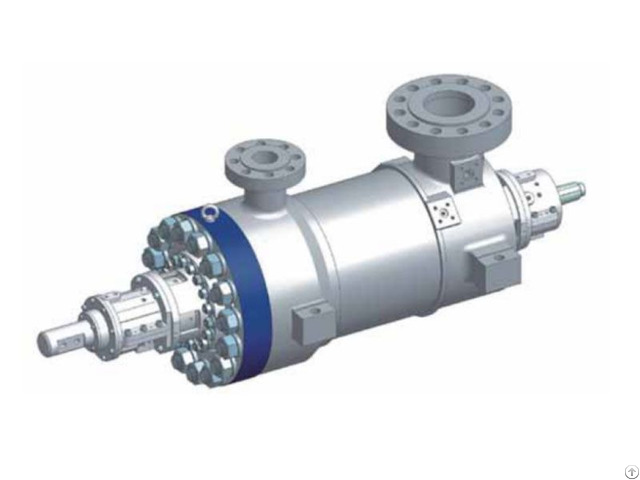

API610 BB5 multi-stage centrifugal pump

API 610 Standard Pump

multi-stage centrifugal pump

General:

Type SBT, multi-stage horizontal radial split casing centrifugal pump, is designed in accordance with API610 and VDMA24297A (heavy duty), .

Ideal for applications of petroleum and LPG in Petroleum Refineries, Petrochemical and Chemical factories, as well as other inflammable, explosive and toxic liquids without solids but in high temperature and pressure conditions.

Thermal feed water pump

Features:

An upgraded new product from its original model transferred from Byron Jackson, USA.

Standard piping design in accordance with API610 and flange drilled to meet GB, DIN and ANSI Standards

Bearing assembly constructed with advanced sliding and axial thrust bearings.

High efficiency and energy-saving hydraulic models utilized for design of liquid contacted components, as a result efficiency increased by 3~5% than ordinary oil pumps.

Configuration, dimensions and performance data shall be basically identical with its original type Y pumps.

Pump components and spare parts highly interchangeable.

Pump components materials can be selected from two standard Group II and III, more choices also available upon request for applications in cold and open locations and ocean vessels.

All bearings shall be water cooled.

Model Nomenclature

E.

G: SBTI40Ax4

50 — Suction Dia.

(mm)

x4 — Upgraded for the 1st time

SBT — Centrifugal oil pump

II — Materials Group

35 — Single stage Head (m)

7 — No.

of stages

B — Impeller Variation

Piping System

Shaft stuffing box, bearing or pump frame shall be cooled with water according to medium temperature and pressure.

Flow of cooling water in each pipe line is recommended within the range of 0.2~0.5 m3/h, and pressure 0.2~0.3Mpa.

Sealing flush fluids vary according to operating conditions such as temperature and pressure etc.

Pressure differential between flushing fluid and stuffing box needs to be 0.07~0.1Mpa as a rule.

In case of calorific medium, the differential shall be min.

0.175~0.2Mpa higher than the vaporizing pressure.

Steam piping, around 0.1Mpa, shall be equipped when medium temperature tends down to crystallizing point.

Applications：

Water supply, Thermal power plant feed water pump/cooling water pump, Pipeling pressure boosting, Refrigeration project
