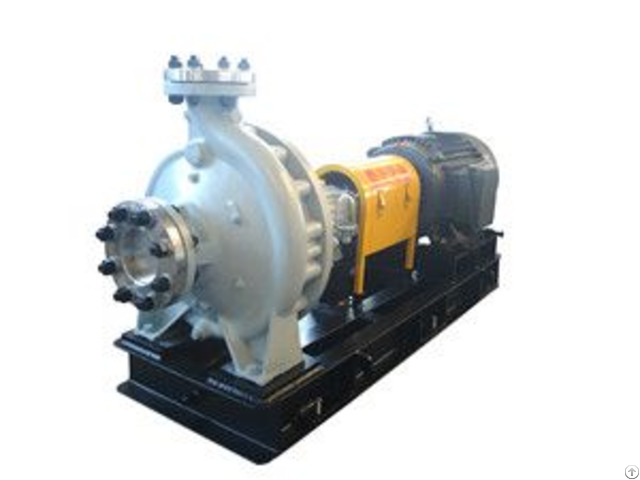

Api610 Oh1 Horizontal Overhung Petrochemical Process Pump - China

Standards: ISO 13709/API 610 (OH1) Operating Parameters: Capacity Q: up to 2600 m³/h ( 11450 gpm )/ Head H: up to 250 m ( 820 ft )/ Pressure P: up to 2.5 MPa ( 363 psi )/ Temperature T: -80 to 300 ℃ ( -112 to 572 ℉ ) Features: Standard modularization design/ The rear pull-out design enables the bearing pedestal including impeller and shaft seal to be removed with the volute casing left in position/ Shaft sealed by cartridge mechanical seal +API flushing plans.

ISO 21049/API682 seal chamber accommodates multiple seal types/ From discharge branch DN 80 (3”) and above the casings are provided with a double volute/ Efficient airfins cooled bearing housings/ High radial load roller bearing.

Back-to-back angular contact bearings handle axial loads/ ZAO open impeller, adjustable bearing carrier allows for easy impeller clearance adjustment for high hydraulic efficiency, specical design for slurry applications/ GB9113.1-2000 PN 2.5MPa suction and discharge flanges are standard.

Other standards may also be required by the user / The pump rotation is clockwise when looking from the drive end/ Jack screws (motor side) for an easier alignment setting/ Bearing lubrication and cooling options: Oil mist /Fan cooling
