Atc Cnc Router Machining Center For Modern Furniture Making - China
price: 16000.00 Dollar US$

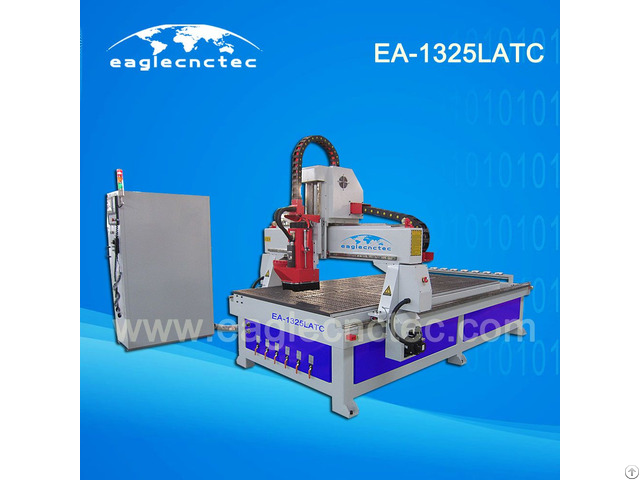

1325 ATC CNC Router Machining Center for Modern Furniture Making
Technical Parameter of ATC CNC Router
XYZ Working Size | 1300×2500×300 mm
Driving Motor | Servo – Delta
Spindle | 9.0kw, air cooling, 0-24000 rpm variable speed (HSD from Italy)
Tool Magazine | Linear Style, 6 position
Tool Shank | ISO30, 6 pieces provided for free
Collet Size | ER32, available diameter of cutter φ3.175-φ18mm
Controller | SYNTEC
Command | G code
Clamp Type | Vacuum and clamp, both work
Vacuum Pump | 5.5KW, air-ring, 160CBM/hour flow rate
XY Transmission | Helical rack and pinion, Planetary gear, HIWIN square linear guide way
Z Transmission | Taiwan TBI rolling ballscrew, HIWIN square linear guide way
Max.
Traveling Speed | 60, 000mm/min
Max.
Cutting Speed | 45, 000mm/min
Working Power | AC 380V/50-60Hz, 3 Ph 4 Wire
Max.
Power Consumption | 22KW
Net Weight | 1600KGS
Optional Device | Tool length sensor
Company Contact:
- Posted By: Jinan EagleTec CNC Machinery Co., Ltd.
- Phone: 86-13065026945
- Address: Gongyebei Road, Jinan , Shandong , China
- Email:
- Website: https://www.eaglecnctec.com
Published date: December 14, 2016
- Business Description: EagleTec CNC can provide you CNC router (include wood router basic type, stone and aluminum working router, atc wood router, multi-head cnc router), panel furniture machining center, cnc plasma and laser cutting machine, spare of router, router bits and woodworking solution machinery include panel saw, vacuum presser, sanding machine and so on.
Also, we can provide you technical assist on router machines.
Our team has over 15 years of experience designing, building and operating CNC machines.
Through the years, we have seen changes and development of this field including hardware and software technology.
We've continued to grow along with it to ensure we're offering the best combinations of each element to help you do your very best job.
