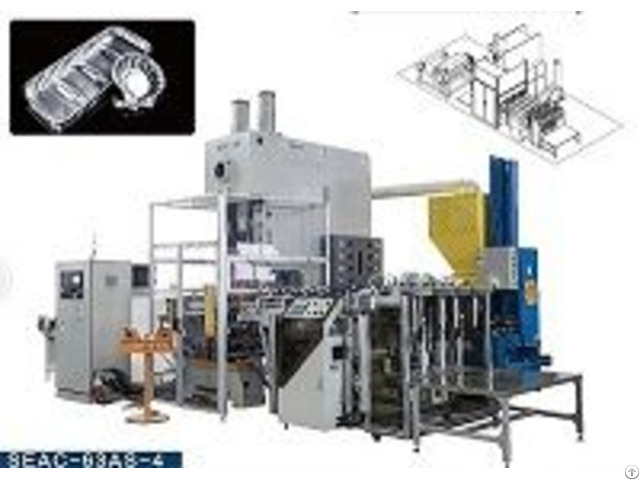

Automatic Aluminum Foil Container Production Line - China

Model: SEAC-63A

Units: Automatic Feeder+Automatic 63Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker& Presser.

It fit for all common size Aluminum Foil Container production requested.

The Big capacity could to cover big range of size products.

Lower power requested than other old model machines.

Specification:

1 - Raw material: Aluminum foil; Thickness: 0.040mm~0.250mm;

Alloy: 8011, 8006, 3003, 3005 etc.

;

2 - Japan Inverter, PLC and 10inch touch screen control system;

3 - Max.

Width of Aluminum foil: 800mm;

4 - Max.

Diameter of Aluminum foil: 700mm;

5 - Core diameter of Aluminum foil: 76/152mm;

6 - Working speed: 40-65 times/min;

7 - Total Power: 12.5kw+2kw+2kw+1kw;

8 - Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;

9 - Install dimension: 5800*2600*3200mm;

Technical Data:

Max.

Mould size: 1100*900*450mm;

Slide block stroke: 180-260mm;

Slide block dimension: 380*145mm;

Automatic mould adjust unit: 0.5kw;

Work plate dimension: 1100*920mm;

Mould handle hole dimension: 50*60mm(Diameter*Depth);

Power: 4P, 380V or 220V, 50Hz /60Hz;

Net weight: 10, 500kg.

SE have the Press model: 55Ton, 63Ton, 80ton, Common Feeder and Embossing Feeder, Common Collector and Auto Stacker for your option.

SEAC-63 is the perfect model to produce food containers.

The container's quality accord to the International Environment Protect Standard.

The Embossing Feeder is a nice design, it's a amphibious feeder, it could embossing the foil together feeding; And you can use it only to feeding foil, only need to adjust the emboss unit, so easy!

Auto Stacker will help you upgrade company capacity level and save labour cost!
