Bcamcnc Trade Assurance Cnc Router Automatic Loading And Unloading Wood Cutting Machine - China

price: 22800.00 Dollar US$

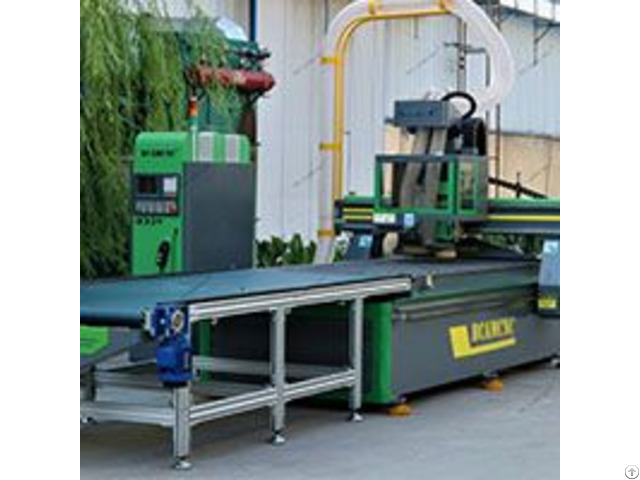

Bcamcnc Trade Assurance Cnc Router Automatic Loading And Unloading Wood Cutting Machine

Products Photos Catalog Bcamcnc Assurance Cnc Photos Catalog

BCAMCNC Trade Assurance cnc router automatic loading and unloading wood cutting machine BCM1325E Loading and Unloading system 1 Working area: 1300*2500*200mm|4*8ft 2 CE standard 3 Panel Loading and Unloading system (Automatic ) 4 Italian HSD 9.5KW(12HP) Electrospindle with 8-position Automatic Tool Changer(ISO30) 5 15mm Heavy duty body 6 Active safety system 7 Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission 8 25mm Heavy-duty Hiwin HG Series linear bearing 9 Vacuum table with Pump 10 Taiwan Syntec 6MB 11 Japan Yaskawa servo motor and drivers system 12 Delta brand VFD-B variable frenquency drive 13 10 Position Automatic Tool Changer (options: 12, 14, 16 position) 14 Tool Cone Holder-for east bit changing 15 Solid State limit switches 16 3 Years Warranty Parameters Standard Specifications BCM1325E X, Y, Z Working Area: 1300*2500*200mm|4*8ft Optional Working Area 1300*1300*200mm|4*4ft Optional Working Area 1500*3000*200mm|5*10ft Optional Working Area 2000*3000*200mm|7*10ft Spindle Power: 9kw Italy HSD air cooling spindle X, Y, Z Traveling Positioning Accuracy: ±0.02/2000mm Table Surface: Vacuum table X, Y, Z Rail and Trasmission: X Y axis gear transmission, Z axis TaiwanTBI Ball Screw Max.

Rapid Travel Rate: 80m/min Max.

Working Speed: 70m/min Loading and Unloading Speed: 15m/min Spindle Speed: 24000r/min Drive Motors: 4 sets 850W Yaskawa servo motor and drivers Working Voltage: AC380v/50HZ/3 phase Command Language: G Code Operating System: Taiwan Syntec 6MB control system Interface: USB, NETWORK Software Compatibility: Option: Alpacam, Carbinets Version, BCAMNESTTING, solidworks, etc.

Running Environment: Temperature: -20℃~45℃ Relative Humidity: 5%~75%


Company Contact:


  • Phone: +86 15668362753

  • Address: No.1166 Xinluo Ave, JiNan , ShanDong PR, China

  • Email: Email


Published date: February 1, 2021

  • Business Description: BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory，a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
