Ck210 Tensile Lathe Sample Preparation Machine - China

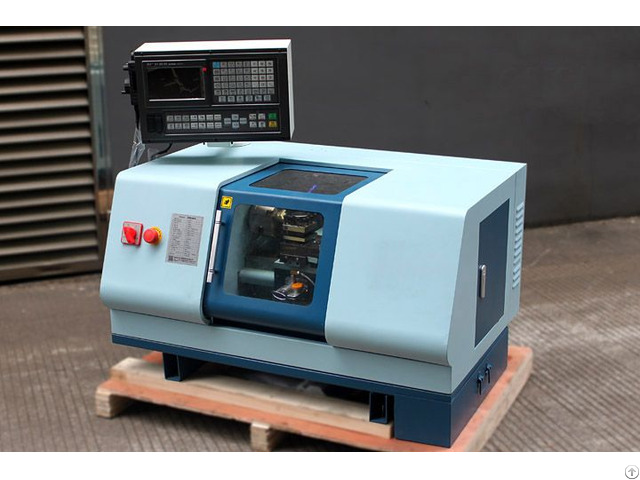

CK210-Tensile Lathe Sample Preparation Machine The Sample Preparation Machine –CK210-Tensile Lathe I is a Compact NC Lathe for various metals and non metals.

The motion control is based on numerical control technology, which is programmable for a range of specimens.

The Turret head and the tail stock features in the lathe enable to operate the machine for various purposes and the spindle can reach speeds of 1750 rpm.

The built-in cover protects the operator from dust and noise.

The controller is user friendly and does not require a highly qualified operator for machine operation.

The machine is built with safety in mind and will halt all operation with the emergency

switches provided.

Technical Specifications

Turning diameter over bed(max) 210mm

Chuck diameter 100mm

Spindle speed 100-1750r/min(control speed of G code)

Spindle through-hole 20mm

Spindle mount MT3

Spindle motor power 500W

X travel 80mm

Z travel 290mm

The max moving speed 2000mm/min<

The max feeding speed 1000mm/min

Control system Adtech 4620, Optional siemens 808D or GSK980TB3 cnc controller

Instruction DXF+G code template function, converting DXF automatically to G code for processing

MPG handwheel 4 axis

Tool position 4

Tool dimension 10*10mm

Tailstock taper MT2

Tailstock sleeve diameter 20mm

Travel of tailstock 25mm

Positioning accuracy: 0.015mm

Repeatability accuracy 0.02mm

Power 220V/110V

Weight(NW/GW) 180/200KG

Overall dimension 1000*580*680mm

Packing size 1100*700*610mm
