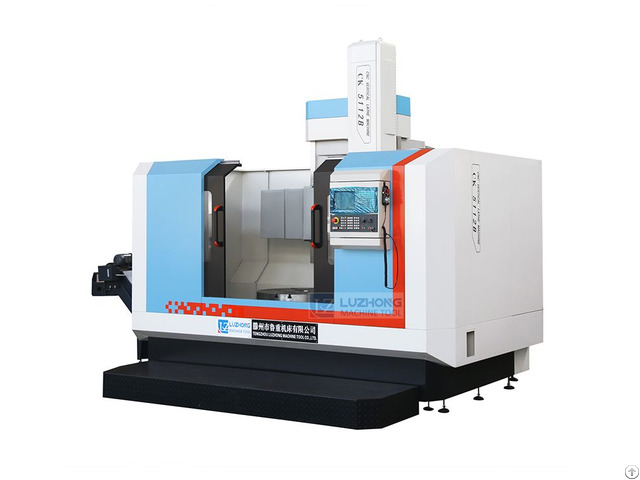

Ck5112b Cnc Vertical Lathe Machine - China

The lathe features:

1 - This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency.

It lathe is apply to machining of all industries.

Rough and finish machining of inside＆outside cylindrical surface, circular conical surface, end face, grooving, arc surface, sorts of curve face and thread

2 - Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering to centering.

Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.

3 - The lathe feed adopts AC servo motor, ball screw for drive.

Rail head of cross beam equipped with close shield, increase the safety and the amenity

4 - The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed

5 - CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device

6 - Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55

More information you can views here Technical specifications:

Specification UNIT CK5108A/B*H/2

Max.

turningDiameter Mm 800

Table diameter Mm 720

Max.

height of workpiece Mm 800

Max.

weight of workpiece T 2

Max.

torqueOf table KN.

m 20

Range of table speeds r/min 10-315

Max.

cutting force of rail head KN 18

Swivel of rail head Range of feed rates Mm/min 0.1-500

Horizontal travel of railhead Mm 570

Ram travel of rail head Mm 650

Rapid traverse of tool head Mm/min 4000

Elevating speed of cross rail Mm/min 440

Height of tool bar section Mm 30*470

Power of main motor KW 22

Overall dimensions Mm 2080*1820*2730 3580*2300*2730

Weight of machine t 7.2/8.5
