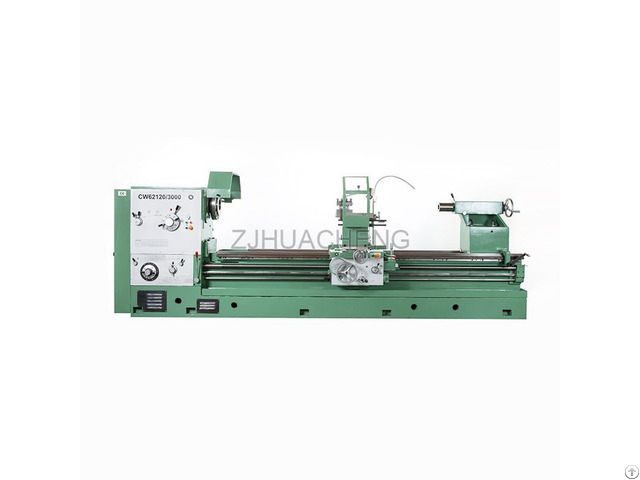

CW Unniversal Lathe

This machine is a universal lathe, suitable for turning excircal, section, slot, boring holes and inner cone, to process different materials' parts.

In addition, it also is applied to turn various threads.

Spindle is three supporting structure, lathe bed is whole, make the bed is of high stiffness, machine tool with separate oil pump, forced lubrication, carriage, tool-post, Sliding base can move fast.

the Huasheng-light duty lathe machine has the strong rigidity, high efficiency, safety, reliability, easy operation and modelling beautiful etc.

Characteristics.

MODEL CW6163 CW6180 CW61100 CW61120 CW6263 CW6280 CW62100 CW62120

CAPACITY

Max.

swing over bed 630mm 800mm 1000mm 1200mm

Max.

swing over gap 830mm 1000mm 1200mm 1400mm

Gap vaild length 250mm

Max.

swing over cross slide 345mm 480mm 680mm 880mm

Center distance 1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m

Max turning length 850, 1350, 1850, 2850, 3850, 4850, 5850, 7850, 9850, 11850mm

Width of bed 600mm

HEAD STOCK Spindle hole Φ105mm(Φ130mm, OPTIONAL FOR CW6180+)

Spindle taper Φ120mm 1: 20(Φ140, OPTIONAL FOR CW6180+)

Spindle speeds 7.5-1000r/min 5.5-730r/min(18级)

GEAR Box-threads&feeds Metric threads mm 1-240mm (52)

Inch threads TPI 1-14 (26)

Moudle threads mm 0.5-120mm (53)

Diametral threads DP 1-28 (24)

Longitudinal feeds range 0.1-24.3mm/r

Cross feed range 0.05-12.15mm/r

Rapid feed: long/cross 4000mm/min, 2000mm/min

TOOL-POST Tool section 32*32mm

CARRIAGE Cross slide travel 370mm 420mm 520mm

Compound rest travel 200mm(option：A-type compound slide auto feed travel is 170mm)

TAILSTOCK Sleeve diameter Φ100mm Φ120mm

Sleeve taper Morse 6#

Sleeve travel 240mm

MOTOR Main motor 11kw or 15kw(option)

Rapid feed motor 1.1kw
