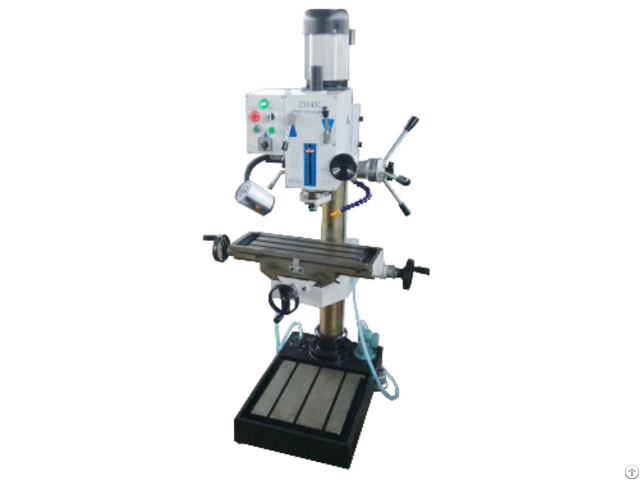

Drilling Machine Z5032c 5040c 5045c - China
price: 1710.00 Dollar US$
Item Z5032C Z5040C Z5045C
Max.
Drilling capacity 32mm 40mm 45mm
Spindle taper M.T.3 or R8 M.T.4 M.T.4
Spindle travel 130mm 130mm 130mm
Step of spindle speed 6 6 6
Range of spindle speed 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 95-1500r.p.m 95-1500r.p.m 95-1500r.p.m
Step of spindle auto-feeding 6 6 6
Distance from spindle axis to column 283mm 283mm 283mm
Max.
Distance from spindle nose to table 700mm 700mm 700mm
Max.
distance from spindle nose to stand table 1125mm 1125mm 1125mm
Max.
travel of headstock 250mm 250mm 250mm
Swivel angle of headstock (horizontal/perpendicular ) 360°/±90° 360°/±90° 360°/±90°
Max.
travel of worktable bracket 600mm 600mm 600mm
Size of worktable 700*240mm 700*240mm 700*240mm
Forward and backward travel of table 210mm 210mm 210mm
Left and right travel of table 400mm 400mm 400mm
Vertical travel of worktable 570mm 570mm 570mm
Size of stand worktable of availability 417×416mm 417×416mm 417×416mm
Motor Power 1.5KW(2HP) 1.5KW(2HP) 1.5KW(2HP)
Voltage/Frequency As customer's requirement
Speed of motor 1400 r.p.m 1400 r.p.m 1400 r.p.m
Cooling pump power 0.04KW 0.04KW 0.04KW
Net weight/gross weight 430kg/487kg 432kg/492kg 432kg/492kg
Packing size 1850×750×1000mm 1850×750×1000mm 1850×750×1000mm
Loading amount 18pcs/20＇ container 18pcs/20 container 18pcs/20＇ container
Company Contact:
- Posted By: CHIZHOU HJ MACHINERY CO.,LTD
- Phone: 86 566 3390679
- Address: Yongsheng , Chizhou , Anhui , China
- Email:
Published date: August 25, 2016
- Business Description: We have exporting experience for more than 15 years.
Our factories are keeping develop and produce innovative high-tech machine tools for metalworking machines and woodworking machines.
Our product rang is Multi-Purpose Machine, Bench Lathe, Milling & Drilling Machine, Drilling machine, Band saw, Woodworking machine series, VMC and other CNC machines.
