Electromagnetic Flowmeter

Electromagnetic Flowmeter

Product code: 145538-152

Update time: 2015.08.25

Views: 1304

Processing custom origin: In kaifeng

Type: Type flow meter SKLD series

Measuring range: 2000 (m3 / h)

Level of accuracy: 0.5

Nominal diameter: DN3-3000 (mm)

Working pressure: 0.6 ~ 4 (MPa)

Working temperature: - 10 ~ 150 ºC (ºC)

Product Overview

SKLD type electromagnetic flowmeter is the intelligent electromagnetic with research and development, which adopts domestic and foreign advanced technology.

Electromagnetic transducer with high-speed central processing unit (CPU) and the features of rapid computing speed and high precision, reliable performance measurement are in both Chinese and English menu.

Electromagnetic Flowmeter is divided into one type of electromagnetic flowmeter and split electromagnetic flowmeter, Insert electromagnetic flowmeter.

Electromagnetic flowmeter can be divided according to the use of function: liquid flow meter, water flow meter, sewage flow meter, Intelligent electromagnetic flowmeter, explosion-proof flow meter, irrigation flow meter, mud flow meter

Sensor uses non-uniform magnetic field technology and special magnetic circuit structure.

Magnetic field is stable and reliable, and the circuit structure reduces the volume, The sensor can reflect the traffic change timely and effectively, and have a stable value of measuring water, sewage, slurry, pulp, acid, alkali, salt slurry liquid and food, etc.

There are lots of wide applications in the petroleum chemical industry, metallurgy, coal, water conservancy project of water supply and drainage, sewage treatment etc.

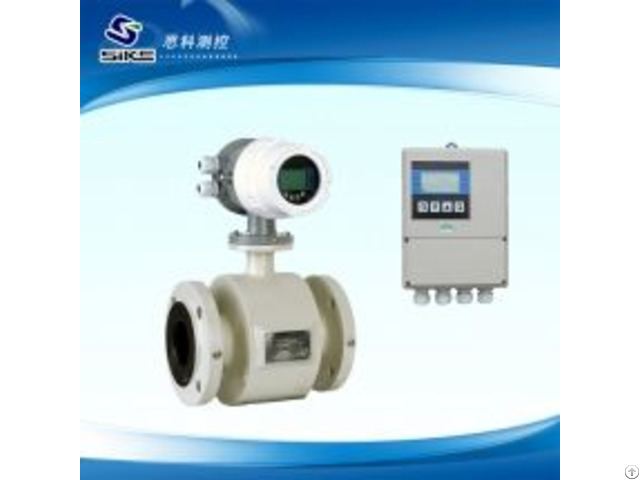

The electromagnetic flowmeter has two types: the compact and the sensor for remote transmitter.

Product Features

In-line unimpeded flow components, measurement of almost no loss of pressure, low straight pipe requirements

Measurement results and the velocity distribution, fluid pressure, temperature, density, viscosity and other physical parameters

Blank-pipe measurement function without additional electrode, continuous measurement, the fixed value alarm

Velocity measuring range: 0.1-15 m/s, velocity resolution: 0.5 mm/SEC

Low frequency square wave excitation and excitation frequency: 1/16, 1/20, 1/25 power frequency power frequency power frequency

High frequency square wave excitation and excitation frequency: 1/2 power frequency (applicable to size measurement) (optional)

Scope: high frequency switching power supply, ac voltage 85 vac - 250 vac

Scope of application: 24 v switching power supply, dc voltage 20 VDC - 36 VDC

High definition backlit LCD display, Chinese, English display mode, (other languages can be customized)

Inside there are three total integrator, respectively record: forward, total difference amount

Optional RS485 and RS232, HART and PROFIBUS and MODBUS (optional), and other digital communication signal output

Electrode and lining material good corrosion resistance and abrasion resistance, can be customized according to user's special conditions of non-standard products

Instrument of impact resistance, good resistance to vibration

Handheld keyboard operation, infrared non-contact operation converter all function over a long distance

Explosion-proof instrument can be used for the corresponding explosion-proof occasions
