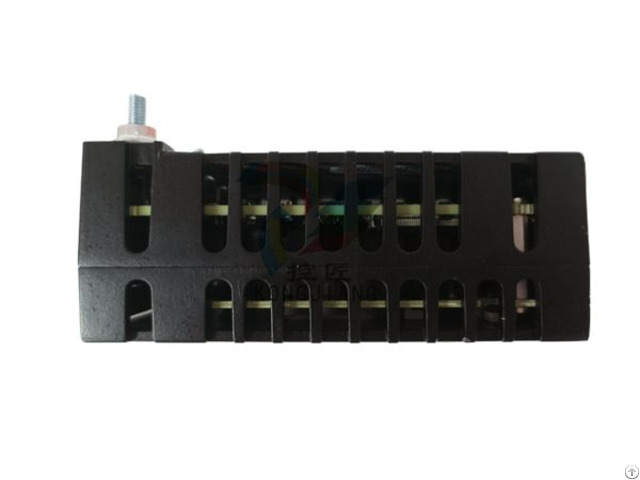

Ge Ic660bba104 Current Source 4 Input 2 Output Analog Blocks - China

GE IC660BBA104 Current-source 4 Input/2 Output Analog Blocks OVERVIEW Current Source Analog I/O blocks are used to interface a controller to devices that provide or accept 4mA to 20mA analog signals.

Two block versions are available: 115 VAC Current-source Analog I/O Block (IC66*BBA104) 24/48 VDC Current-source Analog I/O Block (IC66*BBA024) Features Block features include: Six 4-to-20 mA analog circuits: 4 inputs and 2 outputs Isolated channels No user calibration required for operation Software configurable Advanced diagnostics Dedicated Bus Switching Module control Block diagnostics include: input low and high alarm detection overrange and underrange detection for inputs and outputs input open wire detection output feedback error detection internal fault reporting Block Specifications Size (height x width x depth)8.83” (22.44cm) x 3.34” (8.48cm) x 3.91” (9.93cm) Weight4 lbs.

(1.8 kg) LEDs (I/O Block)Unit OK, I/O Enabled Block to Block Isolation1500V for one minute Group to Group IsolationGroup to Group Isolation Heat Dissipation12 Watts maximum BSM ControlSwitches one 24/48 VDC BSM (IC66*BSM021) Input Specifications Input accuracy (at 25° C)0.1% of full scale reading Input resolution1µA Input conversion time16.6ms to 400ms (user selectable) Range4mA to 20mA Overrange capacity0mA to 25mA Input diagnosticsUnder / Overrange, High /Low Alarm, Open Wire Channel to channel isolation1500V rms Normal Mode Rejection-45 dB at 50, 60 Hz Output Specifications Output accuracy at 25° C0.15% of full scale reading Output resolution6µA Output update frequency6ms to 8ms typical Overrange capacity0mA to 24mA Output diagnosticsUnderrange, Overrange, Feedback error Environmental Specifications Operating temperature0° C to +60° C (+32° to +140° F) Storage temperature-40° to +100° C (-40° to +212° F Humidity5% to 95% (non-condensing)
