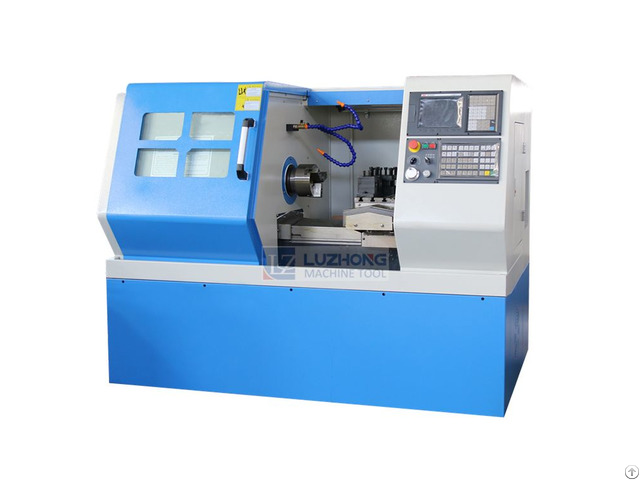

H36 Linear Guide Rail Cnc Lathe - China

Flat Bed CNC Lathe Machine

CNC Lathe Machine

CNC Lathe Features:

Higher accuracy Taiwan linear guideways

Higher speed spindle unit, Optional homemade spindle

Higher rigidity cast iron

Application:

The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body.

This machine is widely used in sanitary, valve, electrical appliance, instrument, automobie, motorcycle, bearoings and so on.

Product main technical specifications:

Specifications Units H36

Max.

swing over bed mm 360

Max.

swing over cross slide mm 110

Max.

processing length mm 250

X/Z axis travel mm 340/250

Spindle nose A2-5

Spindle bore mm 48

Bar capacity mm 38

Max.

spindle speed rpm 2500/4000

Chuck size mm 6

Spindle motor KW 4

X/Z axis repeatability mm ±0.003

X/Z axis feed motor torque N.

m X: 4 Z: 4

X/Z axis rapid traverse m/min 15/15

Tool post type 4 gang type tool post

Cutting tool shape size mm 20x20

Guide form Linear guide rail

Total power capacity KVA 8

Machine dimension(LxWxH) mm 2000/1400x1580

Net weight kg 1500
