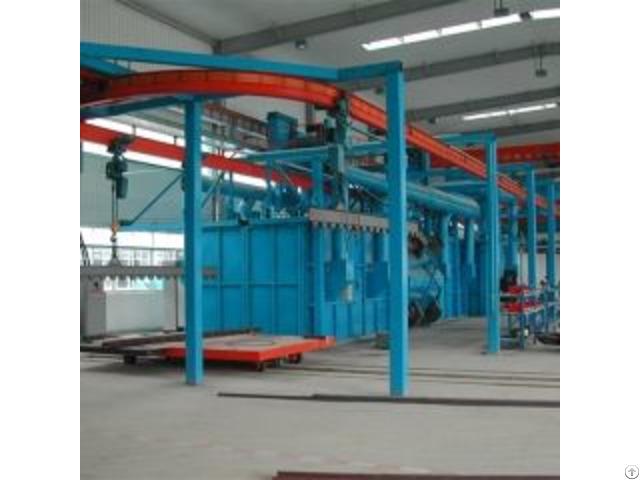

hanger shot blasting machine

Shot Blasting Machine

Item No: 73

hanger shot blasting machine for automobiles, tractors, motors and other small and medium-sized

enterprises of casting and forging, sheet metal pieces to strengthen the surface and clean-up or

treatment; also suitable for liquefied gas bottles clean up the surface rust transmission line, the series

of products with the continuity of good, clean-up efficient and can be used in the line.

Type Q483 Q485 Q4810

Cleaning workpiece size(mm) 800*1200 1000*1500 1000*2500

Number of work position 2 2 2

Quantity of impeller head 4 4 6

Impeller head volume (KG/min) 4*250 4*250 6*250

Impeller head power (KW) 4*15 4*15 6*15

Max hangering weight (KG) 300 300 1000

Productivity hanger/h 30-60 30-60 40-60

Size of the cleaning room (mm) 7680*2000*2900 7680*2000*2900 7680*2000*3800

Total air rate volume (m/h) 17000 19000 19000

Application:

Our shot blasting machine is primarily used to deal with locomotive parts (swing bolster, side frame, coupler, coupler yoke, etc.

), and it also fits for welded parts and small-sized components in batches.

Detailed introduction:

As a piece of complicated metal surface cleaning equipment, the overhead rail shot blast machine is

constituted of several parts.

1 - Work Piece Transport System

The work piece transport system uses stamped and detachable heavy duty chains to lift work pieces, and the hook slideway at the top of blast cabinet adopts labyrinth seal formed by 10mm ZCr5 wear

resistant plate, 8mm 65Mn steel plate, 4mm wear resistant rubber plate and nylon brush, so abrasives

won’t be sprayed out the cabinet.

2 - Blast Cabinet

The blast cabinet of this wheel blast machine is fabricated by welding steel plate and profile steel, and it

is lined with 10-mm-thick ZCr5 wear resistant steel plates which are interchangeable and fixed by

protective nuts.

To achieve complete coverage, the cabinet shape, cabinet size, blast wheel location and

blast wheel angle are all optimized by computer-aided dynamic simulation.

3 - Blast Wheel Assembly

Our overhead rail shot blast machine has 6 blast wheel assemblies on the side wall of blast cabinet, and

these blast wheel assemblies are composed of blast wheel, turbine, belt pulley, V-belt and other

components.

In addition, the applied Q130 blast wheel has one disc and several curved blades, and it is

produced using PANGBORN technology.

4 - Abrasive Reclamation System

The abrasive reclamation system mainly contains screw conveyor, bucket elevator, sand separator, pneumatic valve (for abrasive transport), abrasive delivery chute, automatic compensation unit and so

on.

5 - Electrical Control System

Our overhead rail shot blast machine takes advantage of a PLC controller to realize centralized control, and both automatic control and manual control are available.

Under automatic mode, this machine will

work as regulated by predetermined program, while the manual mode facilitates testing and adjustment.
