High Speed CNC Horizontal Lathe Machine CK06110A Description:

High Speed CNC Horizontal Lathe Machine CK06110A is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret, automatic lubrication system and the cooling system.

HAISHU brand CNC Horizontal Lathe Machine CK06110A is preferable for for metal cutting, turning or drilling functions.

This kind of CNC lathe provides stability, rigidity and accuracy for a variety of applications.

All our CNC lathes can be custom design and fabricate by your requirement.

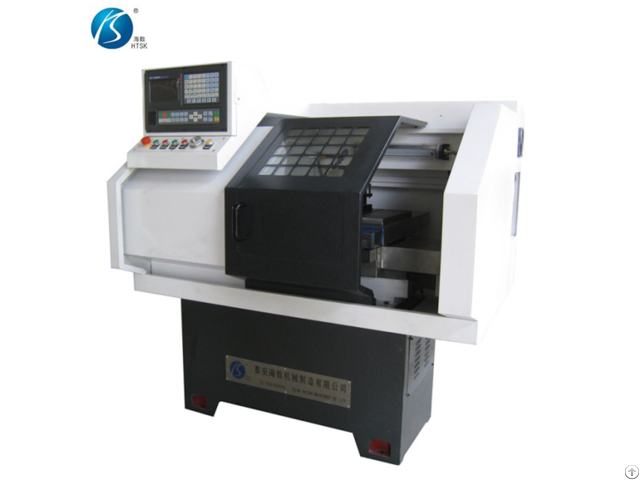

High Speed CNC Horizontal Lathe Machine CK06110A Appearance:

High Speed CNC Horizontal Lathe Machine CK06110A

High Speed CNC Horizontal Lathe Machine CK06110A Specifications:

Items Specifications

CK06110A

Max.

swing over bed

mm Φ300

Max.

swing over carriage

mm Φ150

Max.

length of work piece

mm

220

Spindle head form A2-5

Spindle bore

mm Φ120

Trombone bore

mm Φ110

Guide rail width

mm

300

Guide rail length

mm

880

X / Z axis repeat positioning accuracy

mm 0.012/0.013

X-axis max motion traveling schedule

mm

320

Z- axis max motion traveling schedule

mm

220

X-axis fast moving speed

m/min

5

Z- axis fast moving speed

m/min

8

Range of spindle speed

r/min

200-2200

Turret form Row tool or electric turret(optional)

Power of the main drive motor

KW 4

Overall dimensions(L×W×H)

mm 1550×1000×1500

Net weight

Kg 1600

Advantages

High Speed CNC Horizontal Lathe Machine CK06110A Characteristics:

a.

The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.

b.

Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.

c.

The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.

d.

X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.

e.

Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.

f.

Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
