Horizontal Overhung Foot Mounted Blockless Medium Consistency Pulp And Slurry Pump - China

price: contact company for price

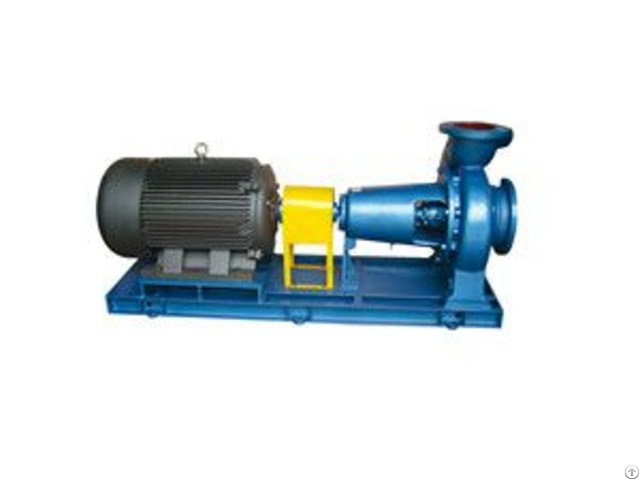

Horizontal Overhung Foot Mounted Blockless Medium Consistency Pulp And Slurry Pump

Products Photos Catalog Horizontal Overhung Photos Catalog

Standards: ShengQuan Operating Parameters: Capacity Q: up to 2000 m³/h ( 8800 gpm )/ Head H: up to 80 m ( 262 ft )/ Pressure P: up to 1.0 MPa ( 145 psi )/ Temperature T: up to 100 ℃ ( up to 212 ℉ ) Features: Standard modularization design/ The rear pull-out design enables the bearing pedestal including impeller and shaft seal to be removed with the volute casing left in position.

The driver does not need to be removed if a spacer coupling is used/ The standard seal arrangement has three options: gland packing, single mechanical seal and double seal/ Open impeller, conveying pulp concentration up to 8% / Replaceable wearplate/ Standard grease lubrication/ For the pulp slurry process, the use of cutting slot technology/ The pump rotation is clockwise when looking from the drive end.

/ Jack screws (motor side) for an easier alignment setting


Company Contact:


  • Phone: +86-535-4702066

  • Address: No.515, Jinniushan Road, Muping District, , Yantai , Shandong , China

  • Email: Email


Published date: April 25, 2019

  • Business Description: Yantai Shengquan Pump Co., Ltd. was founded in 1992 - The company is a professional manufacturer which develops, manufactures, sells centrifugal pumps.

    There are 240 staff and workers, including 30 technicians.

    The company has two factories, with a total area of 135, 000 square meters.

    The current total is USD 29 million.

    There are 100 sets of equipment, including two sets of international standard closed/open mode testing stations.

    The company was certified the Quality System Certification of GB/T9001: 2008/ISO9001: 200 8 Standard.

    The company is a member of China General Machinery Industry Association Pump Association.

    This company is a high quality supplier to SINOPEC, CNOOC, CHEMCHINA, CSECE, etc.
