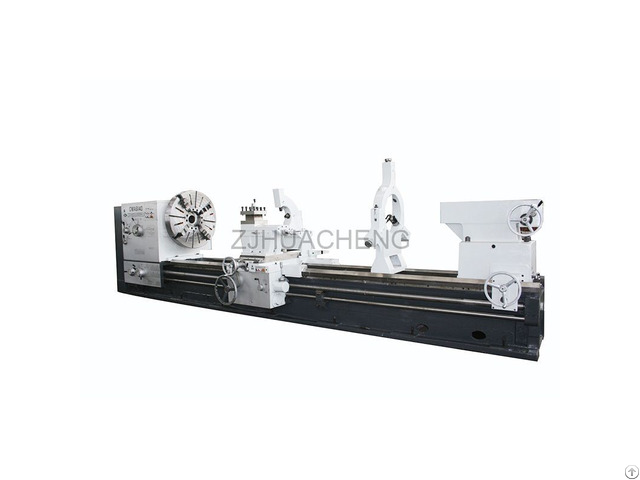

Huasheng Unniversal Heavy Duty Lathe - China

Spindle is three supporting structures, all of which are P5 class precision bearings; There is a safety mechanism in the cross sliding box, which can prevent the lathe from being damaged due to overload.

The upper carriage can cut short cone by motor vehicle, and the compound movement of longitudinal feed and upper carriage feed can cut long cone by motor vehicle The guide rail is quenching on the surface to improve the service life .

The operation handle of the lathe is centralized and easy to operate.

Heavy-duty Unniversal Lathe supplier: Zhenjiang Huasheng Intelligent Technology Co., Ltd

Suitable for high-speed steel and hard alloy steel cutting tools to process different materials of shaft parts, cylindrical and disk parts in turning outer circle, end face, grooving, cutting, boring, turning and boring inner cone, various threads and other processes.

You can visit our website to get the heavy duty lathe machine price

MODEL CWA61100 CWA61125 CWA61140 CWA61160

Max.

swing over bed 1000mm 1250mm 1400mm 1600mm

Max.

swing over cross slide 620mm 870mm 1000mm 1200mm

Center distance 1.5m 2m 3m 4m 5m 6m 8m 10m 12m

Width of bed 780mm

Max weight of work-piece 8T

HEAD STOCK

Spindle hole ∮130mm

Spindle taper Metric 140#

Spindle speeds 3.15-315r 2.5-250r Forward 21kinds, Reversal 12kinds

GEAR BOX-THREADS&FEEDS

Metric threads range(kinds) 44kinds 1-120mm

Inch threads range(kinds) 31kinds 1/4-24 T/I

Module threads range(kinds) 45kinds 0.5-60mm

Diametral threads range(kinds) 38kinds 1/2-56DP

Longitudinal feeds range(kinds) 56kinds 0.1-12mm

Cross feed range(kinds) 56kinds 0.05-6mm

Rapid feed: Long/Cross 3400mm/min, 1700mm/min

TOOL-POST

Distance between Center & Tool 48mm

Tool section 45*45mm

CARRIAGE

Cross slide travel 650mm

Compound rest travel 280mm

TAILSTOCK

Sleeve diameter ∮160mm

Sleeve taper Metric 80#

Sleeve travel 300mm

MOTOR

Main motor 22kw

Coolant motor 0.15kw

Rapid feed motor 1.5kw

Center distance.

(mm) Net weight (kg)

2000 11700 12200 12800 13400

3000 12500 13000 13600 14200

4000 13300 13800 14400 15000

5000 14100 14600 15200 15800

Center distance.

(mm) Dimensions L*W*H (mm)

2000 5100*1900*2400

3000 6100*1900*2400

4000 7100*1900*2400

5000 8100*1900*2400
