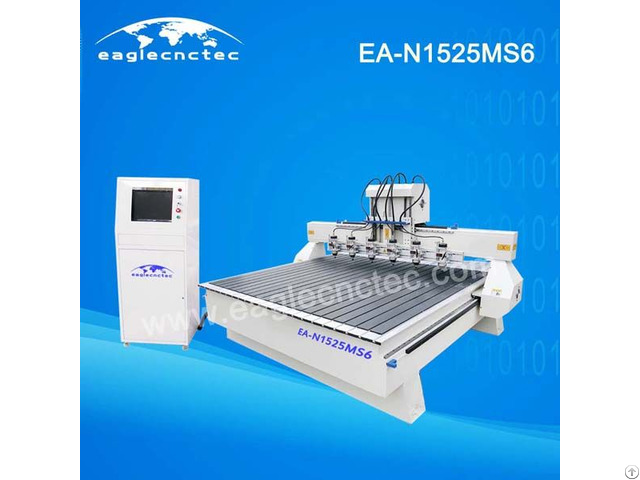

Multi Spindle CNC Router for Mass Wood Carving Jobs

Application of multi head cnc router

Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Carving jobs for European-style furniture: includes bed, cabinet, table, chair, sofa and etc.

Slotting jobs: Slatwall making

Features of six spindle wood router

1) With 6 heads, can get max.

6 pieces jobs one time.

If all heads working together, working size of each head is 250 ×2500mm; if using 3 heads only, working size of each will be 500 ×2500mm; if 2 heads together, then each one working size can reach to 750×2500mm.

2) The Z-axis has a dual pneumatic counter-balance cylinder to allow very fast and accurate Z-axis positioning.



3) Fast and precise with servo motors, quiet operation.

Further the motors are very smooth running and have very good acceleration and deceleration charactics.

4) Frame is welded with seamless steel structure; processed by high temperature

tempering treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 4 legs with adjustable leveling feet.

5) Beam is made of steel.

A steel beam is superior to a aluminum in it’s ability to

suppress and absorb the forces created during cutting.

It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability.



6) The X and Y axis motion is via a rack and pinion drive, which is hardened for

extremely long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw.

7) The Y-axis uses a dual drive, one for each side of the gantry.

8) Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc.

9) Has the function of re-carving after break point and power failure.
