Nema 34 Biploar Stepper Motor 450b 450a 118 For Cnc Router - China

price: contact company for price

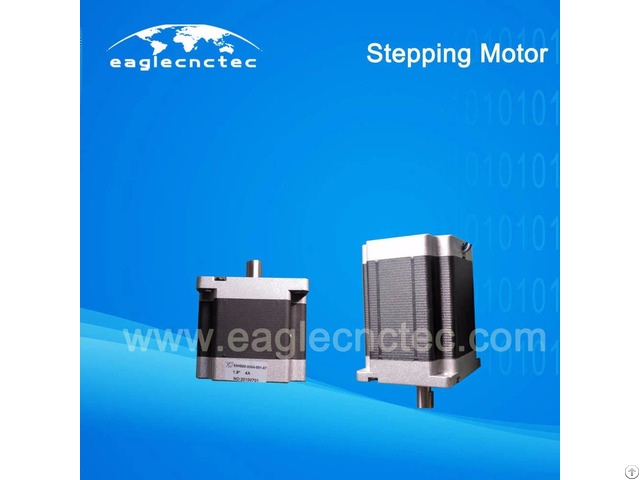

Nema 34 Biploar Stepper Motor 450b 450a 118 For Cnc Router

Products Photos Catalog Nema Biploar Stepper Photos Catalog

Nema 34 Biploar Stepper Motor 450B 450A 118 for CNC Router 450A and 450B are the most popular bipolar stepper motor models which are used on cnc wood router machines.

They are two models of NEMA 34 stepping motor.

450A is usually used on small light duty machines like 6090 cnc router; while 450B is widely used on big machines like 1325 cnc routing machine and wood door carving machine1530 - Besides the above two models, more models of stepper motors can be provide for you also.

Features of Nema 34 Step Motor Model.

85BYGH450A /86BYGH450A

Currency 4A

Step Angle 1.8°

Phase Two Holding Torque: 21kg/cm =2N.

M = 285 OZ-IN

Shaft Diameter: 12.7 / 14mm Net Weight: 2.4kg Features of Bipolar Stepping Motor Model.

85BYGH450B /86BYGH450B

Currency: 5A

Step Angle: 1.8°

Phase: Two Holding Torque: 60kg/cm =5.88N.

M =840 OZ-IN

Shaft Diameter: 12.7 / 14mm Net Weight: 3.5kg


Company Contact:


  • Phone: 86-13065026945

  • Address: Gongyebei Road, Jinan , Shandong , China

  • Email: Email


Published date: May 29, 2017

  • Business Description: EagleTec CNC can provide you CNC router (include wood router basic type, stone and aluminum working router, atc wood router, multi-head cnc router), panel furniture machining center, cnc plasma and laser cutting machine, spare of router, router bits and woodworking solution machinery include panel saw, vacuum presser, sanding machine and so on.

    Also, we can provide you technical assist on router machines.

    Our team has over 15 years of experience designing, building and operating CNC machines.

    Through the years, we have seen changes and development of this field including hardware and software technology.

    We've continued to grow along with it to ensure we're offering the best combinations of each element to help you do your very best job.
