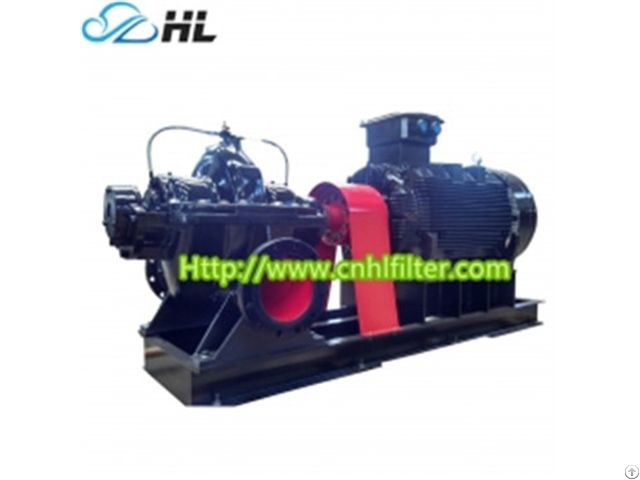

New Product High Pressure Centrifugal Water Pump - China

New product high pressure centrifugal water pump, energy-saving Vertical Sewage Submersible Pump, Floodwater discharging Sewage Pumps, Fire Fighting Pump Control Panel

energy-saving Vertical Sewage Submersible Pump

Floodwater discharging Sewage Pumps

Fire Fighting Pump Control Panel

Quick Details

Place of Origin: Shanghai, China (Mainland)

Model Number: HLS

Theory: Centrifugal Pump

Structure: Single-stage PumpUsage: Water

Power: Electric

Standard or Nonstandard: Standard

Fuel: electric

Pressure: High Pressure

Application: water works

Centrifugal Water Pump

DN: 80-800mm

Max capacity: max 3100L/S

color: blue, red, black or others clients need

Head: Max 200m

Operating pressure: Max 2.5MPa

Operating temperature: Max 120 degree cassias

shaft materials: cast iron, ductile cast iron, cast steel, bronze, SS

Bearing: SKF or NSK for options

Seal: mechanical seal or packing seal

Packaging & Delivery

Selling Units: Single item

Single package size: 76X78X70 cm

Single gross weight: 250.0 KG

Package Type: dufferent models will be different weight and package size.

Package way: polywood

Lead Time :

Quantity(Acre) 1 - 50 >50

Est.

Time(day) 30 To be negotiated

Product Description

1 - Axially pump casing: The casing is axially split, the inline suction and the discharge nozzles are in lower half casing, easy Maintenance

2 - Dual Volute Casing: reduce radial forces, ensuring minimal shaft deflection and low bearing loads.

3 - Between bearing design: Less shaft deflection due to the between-bearing design

4 - Wear Rings: Easily replaceable casing wear rings, protect the pump casing from the abrasion of impeller.

5 - Sealing Flexibility: Pump can be sealed by gland packing or wide range of mechanical seals

Materials cast iron, stainless steel, bronze, duplex stainless steel

General Product Details:

Materials: cast iron, stainless steel, bronze, duplex stainless steel for options

Color: blue, red, green, yellow, green, black, white, or others customers need.

Standard: GB-T5657, GB/T3216

DN: 80-800M

Capacity: max 3100L/S

Head: Max 200m

Pressure: Max 2.5Mpa

Materials of Main Parts:

Parts Name Materials I II III

Casing HT250 QT400-18 ZG230-450

Shaft 45 3Cr13 3CR13

Impeller HT250 ZCuSn10Zn2 ZGICr18Ni12Mo2Ti

Sealing shaft sleeve 45 3Cr13 Cr18Ni12Mo2Ti

Casing sealing ring HT250 ZCuSnPb5Zn5 ZGICr18Ni12Mo2Ti
