Panel Furniture Nesting 3d Wood Cutting Cnc Machine - China

price: 9500.00 Dollar US$

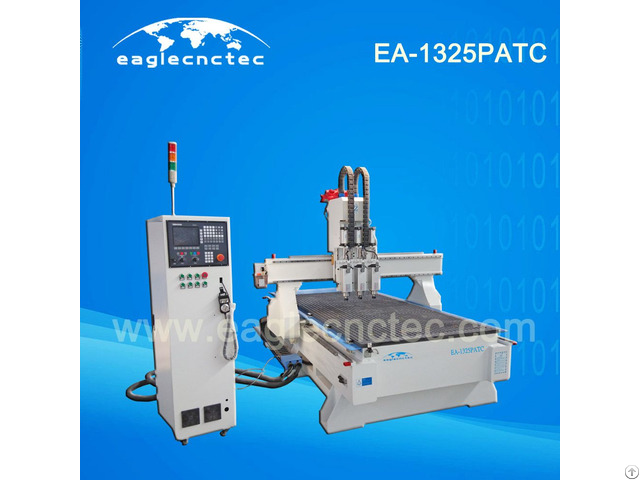

Panel Furniture Nesting 3D Wood Cutting CNC Machine

Working Size (X Y Z) 1300×2500×200 mm

Driving Motor Servo Delta

Controller SYNTEC

Command G-code

Max.

Traveling Speed 60, 000 mm/min

Max.

Working Speed 45, 000 mm/min

Work-Holding By vac-sorb

Vacuum Pump 5.5KW, air-ring, 160CBM/hour flow rate

X Y Transmission Helical rack and pinion, HIWIN square linear guide way

Z Transmission Taiwan TBI rolling ballscrew, HIWIN square linear guide way

Spindle 3.5kw, air cooling, 0-24000 rpm variable speed

Collet Size ER25, available diameter of cutter φ3.175-φ16mm

Working Power AC 380V/50-60Hz, 3 Ph 4 Wire

Max.

Power Consumption 23KW

Net Weight 1700 KGS

Packing Plywood case suitable for sea shipment


Company Contact:


  • Phone: 86-13065026945

  • Address: Gongyebei Road, Jinan , Shandong , China

  • Email: Email


Published date: December 13, 2016

  • Business Description: EagleTec CNC can provide you CNC router (include wood router basic type, stone and aluminum working router, atc wood router, multi-head cnc router), panel furniture machining center, cnc plasma and laser cutting machine, spare of router, router bits and woodworking solution machinery include panel saw, vacuum presser, sanding machine and so on.

    Also, we can provide you technical assist on router machines.

    Our team has over 15 years of experience designing, building and operating CNC machines.

    Through the years, we have seen changes and development of this field including hardware and software technology.

    We've continued to grow along with it to ensure we're offering the best combinations of each element to help you do your very best job.
