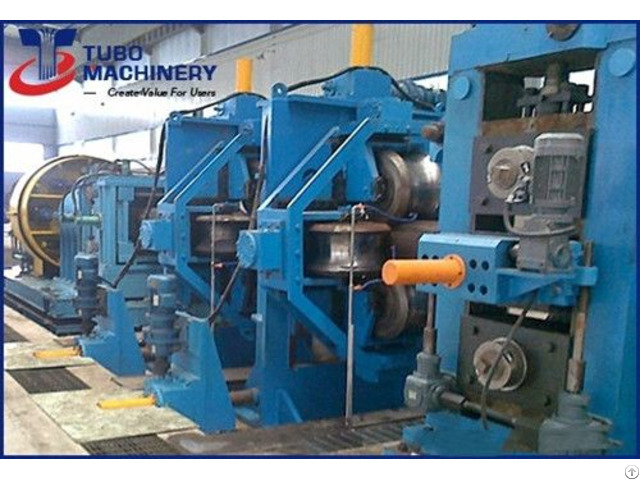

Pipe Mill 426mm - China

Pipe Mill 426mm DESIGNING GUIDELINE

To improve the serviceability and productivity

To improve the stability of the product quality

To improve the output of the line

To reduce cost of the equipment

To meet safety requirements of multi-product small-batch production

To improve the environment and safety in operation I.

Technological Flow:

Coil loading — Uncoiling — Pinching & Leveling — End Shearing — Strip joining — Horizontal Spiral Accumulator — Forming — Welding — O.

D & I.D. bead cutter–SEAM ANNEALING — Air & Water Cooling — Sizing & Straightening — Measuring Roll — Cut off machine — Run out conveyor — End facing & chamfering — Hydrostatic Testing — Ultrasonic Testers — Weighing and Measuring — Painting and Marking — Packing — Warehousing II.

BASIC TECHNICAL PARAMETERS 1 - RAW MATERIAL SPECIFICATION

Steel grade:

Line pipe: A, B, X42, X46, X52, X56, X60, X65, X70, X80

Petroleum casing pipe: H40, J55, K55, N80

Structural pipe: Q215, Q235, Q345, 20#

Coil OD: Ø1350mm~Ø2000mm

Coil ID: Ø610~Ø 762mm

Coil weight: Max.

30t

Strip width: 680mm~1600mm

Strip thickness: 5mm~16mm 2 - FINISHED PRODUCT SPECIFICATIONS

Technical standards: API 5L API 5CT GB/T 3091 JIS G3452 JIS G3444 JIS G3445 ASTM A513 EN 10219

Pipe OD: Ø 219mm ~ Ø 508mm

Length: 6 ~ 20m

Welding Speed: 15~35m/min 3 - Annual Production: 200, 000t/year

4 - Total Installation Capacity: Approx.

3000KW
