Pipe Prefabrication Automatic High Pressure Water Beveling Machine - China

Roller-Bench-Type Pipe High Pressure Water Jet Beveling & Cutting Machine

Model: BPWBM～24A

Performance features

On-line Performance: very good ( Designed as per the one line equipment of the production line)

Beveling Capacity: ≤4Min /pipe bevel (DN200 SCH40)

Bevel cutting: cutting off pipe & with bevel simultaneously.



Bevel quality: good

Technical parameters

Pipe diameter applicable: DN100～600(φ114～610)

Applicable wall thickness: 1～18 mm

Materials applicable: carbon steel, alloy steel, stainless steel, cryogenic steel and other materials

Cutting length: 6350MM

Bevel Shape: V

Cutting direction: lengthwise

Roller bench:

Structure: Three line roller with fixed distance

Roller bed Length: 7000MM

Driving System: servo motor + precision reducer

Rev: 0～2.5M/Min (VF stepless speed adjustment)

Material of the roller bench: carbon steel packing with rubber

Rotation Accuracy: <2.0MM

Trolley System:

Trolley travel: 6350MM(moving lengthwise)

Cutting torch travel: 700MM (up/down); 300MM (left/right)

Cutting with: high pressure water jet cutting

Water cutting angle: ±45°(adjustable)

Water cutter quantity: one piece of water jet tool

Angle error: <2°

Length fixing accuracy: <2.0MM

Control System: High CNC Cutting System

Length-measuring system: CNC length measuring which is included in the control system.

Conveying system: built in a conveying system equipped with a lifter; one set of conveying system can be provided additionally for bevel cutting machine if necessary and conveying can be implemented manually or electrically.

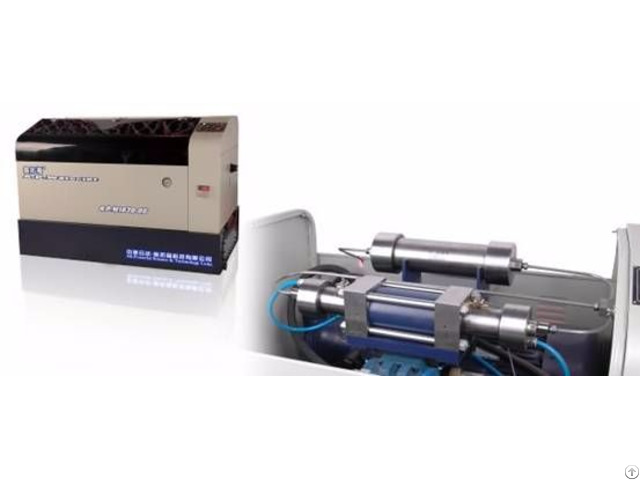

High pressure generator: our OEM products which are famous in China (or as per customers’ demands)

Pressure is increased by: liquid (by hydraulic system and feeding water)

Oil pump capacity: 90L/Min max

Nozzle diameter: 0.3mm max

Highest pressure: 380MPa

Continuous water pressure: 330MPa

Motor power: 37KW
