Pipe Prefabrication Automatic Welding Machine - China

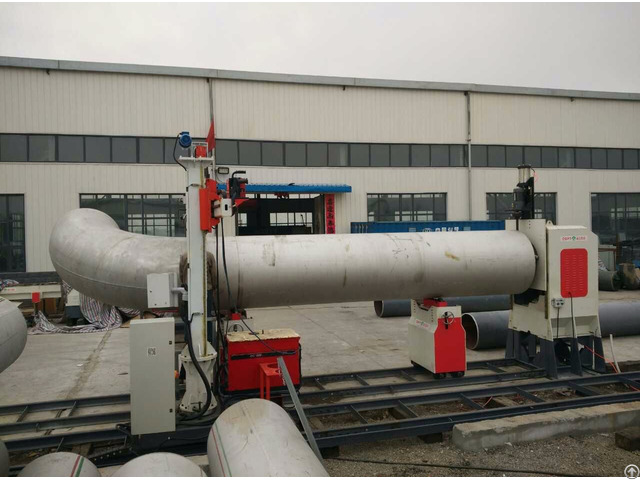

-Cantilever Piping Automatic Welding Machine (FCAW/GMAW)

Model: PPAWM-16Ba/24 Ba/32Ba

Performance features

On-line Performance: Low (the preparation working time is longer than those of Piping Prefabrication Automatic Welding Machine).

Application: extremely broad (pipe and cover welding of various structures in various industries).

Welding Efficiency: Excellent (200～300 inch/day, which is 4 times higher than the manual welding)

Operability: Good (applicable and easy to operate even if you are a new user)

Surface finishing: Excellent (the welding gun will always be positioned in the optimum position)

Welding compliance rate: 98% min (without re-working for the skilled operator).

Driving reliability: extremely good (mechanical clamping for the position changing of the pipe welding and forceful driving).

Technical parameters

-Pipe diameter applicable: DN200-800(φ219-813); DN50-600(φ60-610)/ DN50-400(φ60-426)

-Pipe wall thickness applicable: 3～30mm

-Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

-Welding line applicable: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc.

-Driving System: pipe welding positioner is adopted, clamped pipe by 2 (or 3, 4) jaw chuck & drive it by positioner directly/pipe welding driving machine is adopted, clamped pipe and drive it by chain directly.

-Trolley system: a welding system is mounting on the arm of the trolley which can move along the track according to the welding location.

-Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipeline.

-Counterweight System: no Counterweight

-Speed～regulation Mode: VF stepless speed control system

Adjustment Mode: electric cross regulator

Oscillating system: a product of our patented technology, driven by the common motor; step motor driving and digital displaying oscillating width adjusting.

-Control system: a product of our patented technology, PLC control.

-Welding Procedure：FCAW/GMAW

-Welding Power: our OEM products which are famous in China (or as per customers’ demands)
