Pipe Prefabrication Automatic Welding Slip On Flange - China

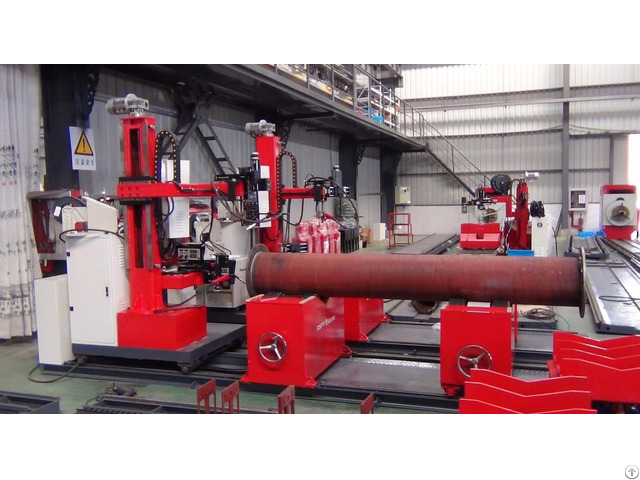

-Slip-on Flange Automatic Welding Machine (FCAW/GMAW)

Model: PPAWM-24Da/32Da

Performance features

Online-performance: Design not for the working of production line

Application: Slip～on Flange for the welding line of the internal and external incidence angle

Welding Capacity: Excellent (250～350 inch/day, which is 4 times higher than the manual welding)

Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)

Surface Forming: Excellent (the welding gun will always be positioned in the optimum position)

Welding compliance rate: 98% min (without re-working for the skilled operator).

 Driving Reliability: good

Technical parameters

Pipe diameter applicable: DN100-600(φ114-610)/DN10 0-800(φ114-813)

Pipe wall thickness applicable: 3～30MM

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, etc.

Welds applicable: welding line of flange-pipe

Machine head system: one welding head with two welding guns at one end/two welding heads with four welding guns both at two ends .

Driving system: driven the motor of active idler wheel frame

Clamping system: clamped by chain or contact roller

Bracket system: two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the track.

Counterweight System: Nil

Speed-Regulation Mode: VF stepless speed control system

Adjustment Mode: electric cross regulator

 Swaying system: a product of our patented technology, driven by step motor and oscillating adjusting with digital display.

-Control system: a product of our patented technology, PLC control.

Welding Procedure: FCAW/GMAW(or as per request)

Welding Power: our OEM products which are famous in China (or as per customers’ demands)
