Pipe Prefabrication Bevel Equipment - China

Fixed-type High Speed Numerical

Control Pipe End Beveling Machine

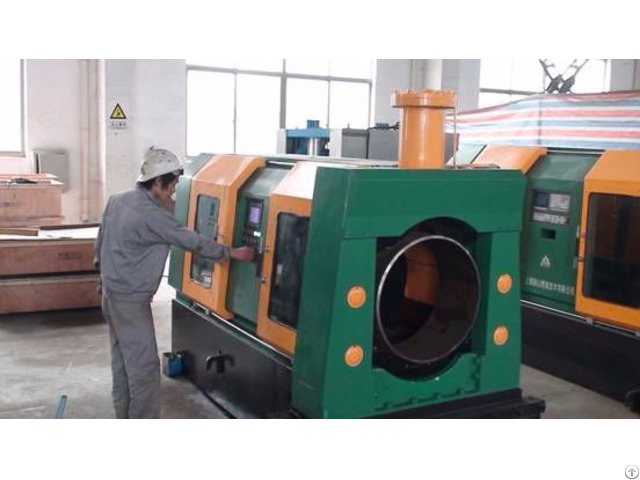

Model: FPEBM-16Ca/24Ca/32Ca;FPEB M-24Cb/32Cb

Performance features

On-line Performance: Good(Designed as per the on-line equipment of the production line)

Beveling Speed: ≤5Min /pipe bevel (DN200 SCH40)

Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.

Bevel quality: very good

Application: for machining the U or V shape bevels for numbers of pipes with heavy wall thickness

Technical parameters

Pipe diameter applicable: DN50-400(φ57-426)/ DN100-600(φ114-610)/ DN200-800(φ219-813);DN10 0-600(φ114-610)/ DN200-800(φ219-813)

 Pipe wall thickness applicable: 4-90mm; 6-180MM

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.

Bevel shape: Ｕ, Ｘ, Ｖ and Double V

Cutting direction: radial automatic differential cutting feed or axial semi-automatic motor cutting feed(Inlet frequency); radial NC motor cutting feed or axial NC motor cutting feed

Retracting direction: radial automatic motor retracting or axial automatic motor retracting(Inlet frequency); radial NC motor retracting or axial NC motor retracting

Driven by: motor

Clamping system: work piece is clamped by hydraulic cylinder & centering automatically

Bracket system: screw lifting adjustable

Rev of the principal axis: stepless speed control & variable frequency

Axial displacement: 80mm(principle axis) 100mm(machine head); 150mm(principal axis), 300mm (machine head)

Bevel angle of tool rest: 0°～45°

Widthwise displacement: ±50MM; ±100MM

Control system: PLC Controlling;CNC Controlling

Automatic aligning: At the end of beveling machine conveying system equipped with lifting device could be provided if necessary to adjust automatically the center elevation of the pipe, so as to bevel the pipes with different diameter
