Pipe Prefabrication Profile Cutting Machinery - China

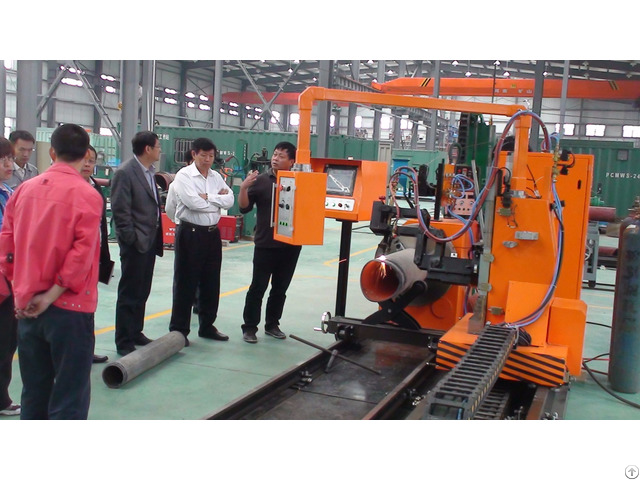

CNC Pipe Profile Cutting Machine.

Model：CNCPCM-24A/ 32A/48A/60A

Technical parameters:

Pipe diameter applicable: Φ50－Φ600/800/1200/150 0mm

Cutting Pipe wall thickness: 1－25mm (plasma cutting) or as per plasma generator; 5－60mm(flame cutting)

Cutting speed: plasma cutting speed: 50—3800 mm/min; flame cutting speed：50-750mm/min

Number of axis under control: 3-6 Axis

Work piece axis of rotation(X)

Cutting the first work piece along the axis of axial movement(Y)

Cutting torch along the axial swing axis work piece (Z)

Cutting torch along the work piece swing radial axis (W)

Cutting the first spindle axis vertical take-off and landing (U)

Cutting nozzle strength out and draw back axis (V)

Angle of bevel: plasma cutting±45°(adjustable) ；flame cutting：±60°(adjustab le)

Cutting Pipe length: ≤12000mm

Max load pipe weight: 4000KGS

CNC system：original import IPC
