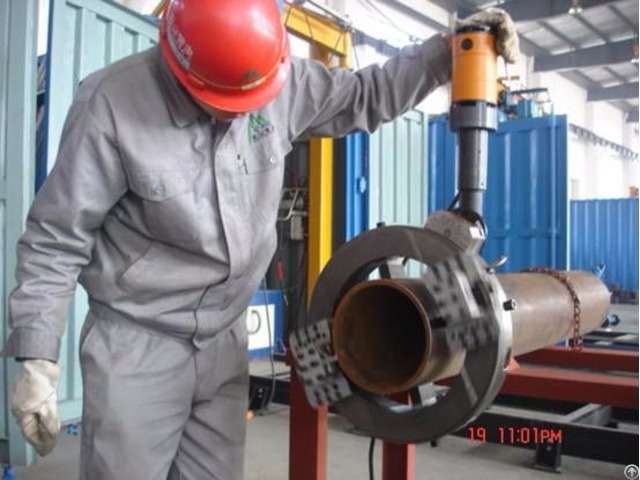

Portable Orbital Pipe Cutting And Beveling Machine - China

Performance features

Online-performance: (designed as per the on-line equipment of non production line)

Beveling Capacity: ≤8Min /pipeline bevel (DN200 SCH40)

Bevel cutting: cutting a pipe with other equipment such as band saw and then machining each bevel.

It is also could be used to cut pipe

Bevel quality: good

Mobility: very good

Application: for cutting small amount of pipes with common wall thickness and beveling the endＶ-shape bevel.

Technical parameters

Pipe diameter applicable: 1350-1500/1150-1300/1010- 1160/φ900-1050/φ750-900 /φ600-750/φ450-600/φ30 0-450/φ150-300/φ65-150/ φ10-80

Applicable wall thickness: ≤25mm(electrical & pneumatic);≤60mm(hydrau lic & digital)

Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel, ect.

Bevel Shape: V

Driven & Control System, ：By motor, pneumatic, hydraulic & numerical control.

Rev: 5r/min, 5r/min, 5r/min, 5r/min, 6r/min, 7r/min, 8r/min, 10r/min, 13r/min, 16r/min, 20r/min

Clamping system: Multi-blade orbital track; clamped and fixed with screw
