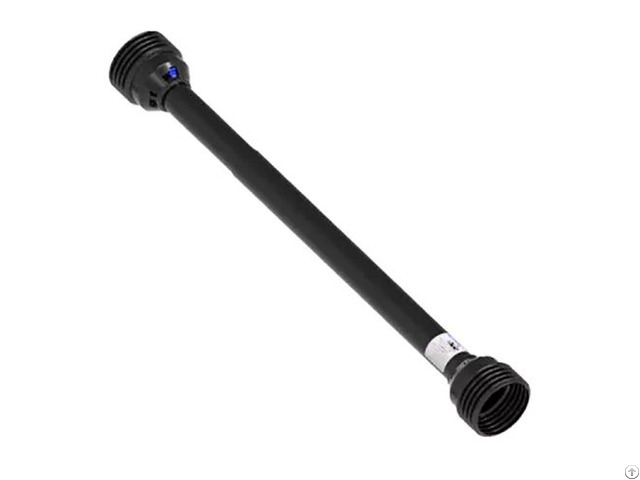

Pto Shaft Of 77 Series Replaces Weasler - China

The 77 series of high-performance PTO drive shafts provide the most popular drive shaft solutions for the lawn and turf industries.

These PTO drive shafts come as complete assembly from tractor to the implement.

They are made for long-term heavy-duty use and are able to meet the demands of large-scale farms and contractors.

PTO shafts for tractor and Wide-angle CV PTO shafts can be adaptable to standard PTO driveshafts that are available on the market.

Specifications of the 77 Series PTO Shaft

The Easy Lock Guard Set Length 60.00 inches 1524 mm

Outside Diameter 7.72 inches 196 millimeters

Shipping Dimensions 60" L 60" L 7.72" H 60" L x 7.72" H 7.72" W 150.2cm L x 20cm H 20cm W

Shipping Volume 3575.90 in3 58599 cm3

Shipping Weight 4.30 pounds 2 kilograms

Weight 4.30 pounds 2 kilograms

Yoke And Shaft HP@1000RPM 264 HP The power of 197 kilowatts

Length 32.75 inches 832 mm

Dimensions of Shipping 34.25" L 3.6" H 5.75" W 95cm L x 87cm H 15cm W

Shipping Volume 677.92 in3 11109 cm3

Kit of Bearings And Cross Diameter of Bearing 1.77 inches 45 millimeters

Bearing Spannel 4.95 inches 126 millimeters

Diameter of Bearing 1.77 inches 45 millimeters

Bearing Spang 4.95 inches 126 millimeters

Height 1.77 inches 45 millimeters

HP@1000RPM 264 HP 197 Kilowatts

HP@540RPM 172 HP 128 Kilowatts

Kit Type E

Length 4.95 inches 126 millimeters

Interval of Lubrication 50.00

Dimensions of Shipping 4.957" L 1.772" H 4.957" W 13cm L x 5cm H 13cm W

Shipping Volume 43.54 in3 713 cm3

Snap Ring Location External

Width 4.95 inches 126 millimeters

7 Series replacement Parts Weasler PTO Shafts Parts

Are you searching for an reliable source of PTO drive shaft components? At HZPT we offer everything you require to boost the performance of your tractors and implements.

We have a variety of PTO shaft assemblies and components from top-quality manufacturers in the field.

Our vast inventory lets us offer the products at competitive prices.

In our assortment of tractor PTO shafts there's everything from shafts and yokes to rolling pins and drivetrains.

We'd love to hear from you when you're struggling to decide the best products for your machine.

Our team of experts can guide you to the proper direction.

Tractor Yoke The Cross & Bearing Kit Shaft Shaft Weld Yoke

Slip Sleeve Tube Tube It is a Weld Yoke Use Yoke

Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard & Guard Bearing

77 Series PTO Shaft Performance Benefits

(1) Sturdy and durable PTO shaft well-forged Series driveline shaft, 77, that comes with CE certification.

It is made up of an unbreakable 20CrMnTi steel carburized universal joint, and the Q345 steel tube that is inside the shield.

Its PTO shaft is strong and strong when used in conjunction with different agricultural machines.

(2) (2) Spline and Round Ends Made using a six-spline tractor ends and a round-end for implements the 77-series PTO shaft comes with a standard dimension of 1 3/8 inches.

It is compatible with the same dimensions and style of implements and tractor shafts, providing an impressive power source for your equipment.

Your machine will be operating more efficiently than ever before.

(3) Flexible Length Compressed Length 39" 1, 000 mm; Extended Overall Length 55" 1400 millimeters.

Its PTO shaft is made of the telescoping tube of steel with a universal joint and yokes.

It's got 35 HP 26 Kw, 460 Nm of torque at 540 rpm.

The shaft at 1000 rpm, it has 53 HP 39 Kw, and 360 Nm of torque.

It permits 2 sides on the PTO drive shaft to rotate at different speeds.

(4) Easy Assembly and Safer Utilization: As a highly efficient power transmission tool Our PTO extender shaft is quickly assembled for easy replacement.

Security chain as well as robust shield prevent any potential hazards in this transmission procedure.

(5) Large Application (5) Wide Application PTO (Power Take-Off) shaft transmits energy from the tractor into the attachment powered by PTO.

It is extensively employed on wooden chippers and rotary tillers brush cutters, rotary cutters, hush-hugs, fertilizer spreaders, tractors, and many more.

You can control the speed and power of your machine efficiently.

A powerful torque conversion system and durability will leave you wanting to get our PTO shaft earlier.
