Pto Shaft Replacement Of Weasler 35 Series - China

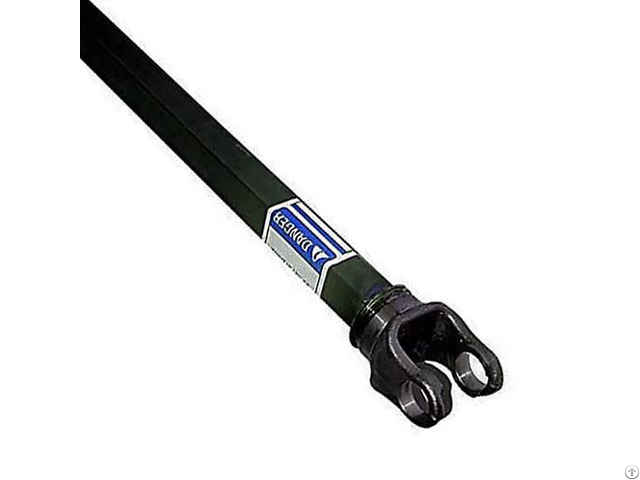

PTO Shaft Replacing for Weasler 35 Series The 35 Series Yoke & Tube Assembly is an extremely durable PTO shaft yoke built to last.

This PTO Yoke has an 1-2/9 inch.

square bore that makes it easy to connect.

The length of the shaft is Centerline (Center of Ear hole to rear of the tube) 34-2/3 inches.

Tube Outer Diameter 1-9 in.

Tube Inner Diameter 2-9 inches.

square

The PTO drive shaft yoke runs at 108 kilowatts/81 HP at 1000RPM or 70 HP/52 Kilowatts @ 540 RPM for maximum efficiency.

Weight of PTO's yoke: 12.06 lb.

How Does Tractor PTO Shaft Work?

The PTO shaft is the one that transfers the power of your tractor onto the machine you prefer.

This PTO driveline is the place that everything else that requires power from a tractor gets its energy from.

PTO drivelines can be ignored during routine maintenance checks because they are so important when operating farm equipment.

PTO Shaft Size Importance

It is essential to have the right dimension, no matter what task you'll use the PTO shaft for.

The manufacturer will provide length recommendations to help to get an idea.

When measuring the length of a PTO shaft, you can use the tape measure and take measurements from the outside of the yoke to determine the length that is closed.

The series size should match to the amount of horsepower that your tractor is equipped with.

Two speeds are employed the most often for tractor PTO shafts.

the 540 PTO shaft as well as the PTO shaft that runs at 1000 rpm.

What are the components of the PTO Tractor Shaft Drive Shaft?

1 - The tractor yoke PTO assembly begins with this kind of yoke.

It is attached to the tractor and is used to connect to the power train.

There are two primary kinds of tractor yokes.

One type includes a spring lock which utilizes a spring-loaded neck to join and unhook the yoke.

The second is a quick-to disconnect, which connects using a pushpin.

The tractor yoke could be identified as a six-spline, 20-spline or 21-spline to indicate the way it connects to the connector to the tractor.

It is identified by counting the notches in the collar of the yoke.

2 - Kit for Bearing and Cross- This u-joint is used to connect the yokes within the PTO assembly.

Its cross-bearing kit could contain a snap ring within the bushing internally or externally.

This means that it is located in the ear that connect the yoke.

3 - Shaft Yoke - A cross and bearing kit joins the tractor yoke and the shaft of driveline.

4 - Shaft - The shaft is the rod made of steel that is located at the heart of the driveline that provides its length as well as connecting the yoke to the attachments.

5 - Tube-The shaft goes through this cylinder of steel, adding an extra layer of protection to the driveline

6 - Tube Yoke- Connected to the tube's tip it connects the driveline and the device by using a cross that is connected to a bearing kit.

7 - Implement YokeThe Implement Yoke links the driveline and the device or machine which is operated by the tractor.

8 - Guard- A tough plastic covering is positioned around the driveline to protect it from the driveline from being damaged during operation.

What is the best way to tell whether an PTO Shaft is North American or Metric?

The easiest way to determine whether the PTO belongs to North American or metric is to identify its design of the tubingand shafting.

A PTO is considered to be domestic in the event that the tubing or shafting is rectangular, square or hex-shaped.

It can also be splined.

It is metric when the tubing/shafting is an oblong, lemon or star-shaped.

There are two types of metrics drivelines that are Germany-style (Walterscheid label) as well as Italian-style (Bondioli and Pavesi).

The German-style tubing comes with star and lemon profiles and the Italian features a bell-shaped style.

How do you measure the PTO Shaft?

Make two measurements from the U-joint on the tractor, or the driving end of the PTO Shaft: Find the bearing Cap diameterMost U-joints are uniform in diameters for caps.

Cap diameters may differ between Constant Velocity drives.

To improve your practice and increase accuracy, you should measure all caps.

The cross-kit width is measured and length from cap to cap: You will also need to measure the U-joint length from the cap's edge towards the cap's end.

cap.

To ensure the most accurate measurement and increase the likelihood of locating the correct PTO shaft, you must remove the cross-kits from the yokes prior taking measurements.

Remember that certain series may not be uniform in their width.

The cross kit should be measured in on both sides is your most effective practice to guarantee accuracy.
